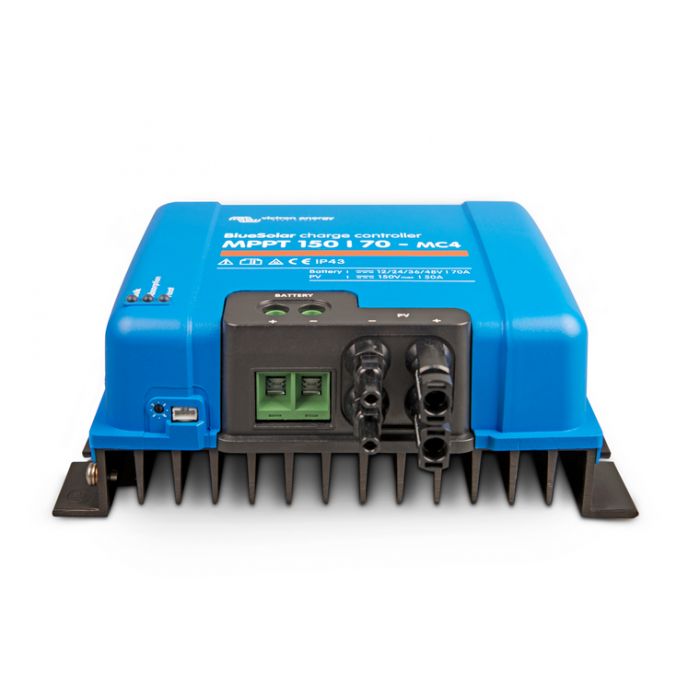

Victron BlueSolar MPPT Charge Controller 150/70-MC4 (12/24/36/48V-70A)

SKU SCC010070300
Original price $499.00 - Original price $499.00
Original price
$499.00
$499.00 - $499.00
Current price $499.00

In Stock & Ready to Ship

All orders are shipped within 1-2 business days. Product ETA 7-14 business days.

 The BlueSolar MPPT Charge Controller 150/70-MC4 (12/24/36/48V-70A) is a solar charge controller designed to efficiently gather energy from solar panels and store it in batteries. Utilizing advanced technology, BlueSolar maximizes energy harvest by intelligently driving the charging process, aiming for a full charge in the shortest time possible. This proactive approach not only optimizes energy utilization but also contributes to maintaining battery health, thereby extending its overall lifespan.

MPPT: Ultra-Fast Maximum Power Point Tracking

The controller employs MPPT technology, continuously monitoring the voltage and current output of solar panels. This ensures that the maximum available power is efficiently extracted from the panels and stored for later use. This capability is particularly advantageous in varying light conditions, such as partial cloud cover, where light intensity fluctuates.



Remote Monitoring and Control

Users can remotely control and monitor the extensive features of the BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with a smartphone or other devices using VictronConnect. For installations connected to the internet, the Victron Remote Management Portal (VRM) offers convenient access to the full power of the MPPT from anywhere, at any time. Both VictronConnect and VRM services are provided free of charge.



LoRaWAN Compatibility for Remote Installations

In remote installations where internet connectivity or phone signals may be absent, users have the option to monitor the MPPT through Bluetooth pairing with a LoRaWAN (long-range wide area network) device, available optionally. This feature ensures accessibility even in off-grid scenarios without immediate internet or phone signal availability.

The BlueSolar MPPT Charge Controller is not just a reliable energy management solution but also offers user-friendly features for convenient control and monitoring, making it suitable for a variety of solar power setups.



Model BlueSolar MPPT 150/70
Battery Voltage 12 / 24 / 48V (Auto Select, software tool needed for 36V)
Rated Charge Current 70A
Nominal PV Power (12V) 1000W
Nominal PV Power (24V) 2000W
Nominal PV Power (48V) 4000W
Max. PV Short Circuit Current 50A
Max. PV Open Circuit Voltage 150V (absolute max in coldest conditions), 145V (start-up and operating max)
Maximum Efficiency 98%
Self-Consumption 10 mA
Charge Voltage (Absorption) Default: 14.4 / 28.8 / 43.2 / 57.6V (adjustable)
Charge Voltage (Float) Default: 13.8 / 27.6 / 41.4 / 55.2V (adjustable)
Charge Algorithm Multi-stage adaptive
Temperature Compensation -16 mV / -32 mV / -64 mV / °C
Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit, Over temperature
Operating Temperature -30 to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Data Communication Port VE.Direct (see data communication whitepaper on the website)
Parallel Operation Yes (not synchronized)
Enclosure Color Blue (RAL 5012)
PV Terminals 35 mm² / AWG2 (Tr models)
MC4 Connectors (up to 150/70) Two sets of MC4 connectors
MC4 Connectors (150/85 and 150/100) Three sets of MC4 connectors
Battery Terminals 35 mm² / AWG2
Protection Category IP43 (electronic components), IP22 (connection area)
Weight
Dimensions (h x w x d) Tr models: 216 x 295 x 103
Standards EN/IEC 62109-1, UL 1741, CSA C22.2
