Morningstar SureSine 150W 12V to 120VAC 60Hz Pure Sine Wave Inverter with Hard-Wired AC Output
by Morningstar
SKU SI-150-12-120-60-HW
Original price
$300.00
-
Original price
$300.00
Original price
$300.00
$300.00
-
$300.00
Current price
$300.00
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.
The new SureSine off-grid inverter line is comprised of six new models from 150-2,500W with 120 or 230V output and 12, 24 or 48V DC input options to cover a wide range of off-grid applications requiring a high-performance, industrial-grade, pure sine wave inverter. They greatly expand our inverter offering that started with the acclaimed SureSine Classic. This new SureSine line has:
- Wireless Android and iOS utility apps for set-up and monitoring with remote devices, plus Bluetooth communications
- Multiple AC hardwire remote terminal options on selected models
- Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance
Specifications and Certifications by Model
| SureSine 150 | ||
| Rated Battery Voltage | 12, 24 or 48V | |
| Minimum Battery Operating Voltage | 10.5 / 21.0 / 42.0 V | |
| Maximum Battery Operating Voltage | 16.5 / 33.0 / 66.0 V | |
| Continuous Power @ 25C | 150 W | |
| Power Surge @ 40C (< 5 sec) | 300 W | |
| Operating Temperature Range | -40°C to +60°C | |
| Peak Efficiency | 89 / 89 / 90% | |
| Output Voltage Model Options | 120 / 230V +/-5% V | |
| Output Frequency Options | 50 / 60 Hz | |
| Waveform | Pure Sine Wave | |
| Total Harmonic Distortion (THD ) | <2% | |
| Continues... | ||
| Electronic Protections | AC Short Circuit, AC Overload, High/Low Voltage | |
| Battery Reverse Polarity | Replaceable internal fuse | |
| Cooling | Fanless natural convection | |
| Operational Humidity Level | 100%RH non condensing | |
| Weight | 3.8 kg / 8.4 lbs | |
| Dimensions | 312 x 190 x 96 mm 12.2 x 7.5 x 3.8 in |
|
| IP Rating | IP20 | |
| Wired Communications | RS485, MS-CAN | |
| Wireless Communications | Bluetooth, companion Android & iOS Apps | |
Key Features and Benefits
- Superior industrial-grade product design and manufacturing
- Engineered for system-level integration and communication with Morningstar charge controllers

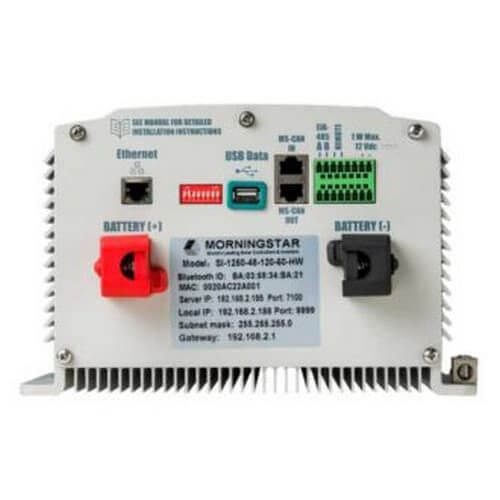

- Communication ports: RS485 USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol
- Wireless Android and iOS utility apps included for set-up and monitoring with remote devices

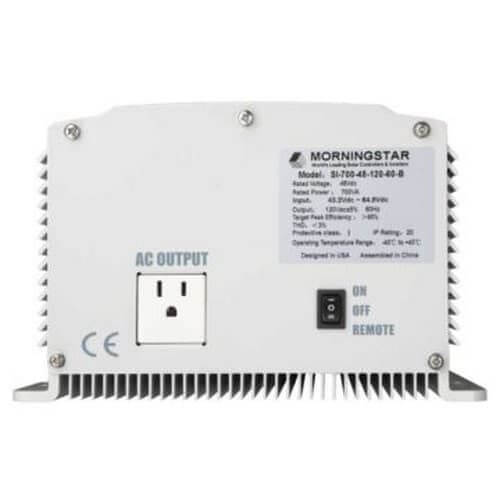

- AC hardwire terminal option available on selected models (all power ranges and frequencies)
- Remote On/Off improves safety and enables control in inaccessible locations
- Auxiliary Power Output (700-2500 W models) provides power for an EIA-485 bus or other small DC loads
- Overbuilt, industrial-grade low-frequency transformer for improved sinewave stability
- Fanless convection cooling with extruded aluminum heat sinking, for maximum efficiency and reliability
- Status LEDs for both System and AC Sinewave output, to ensure reliable operation and notify of any system alerts
- Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance
- Configuration can be achieved via manual DIP switch configuration or digitally programmable custom setpoints
