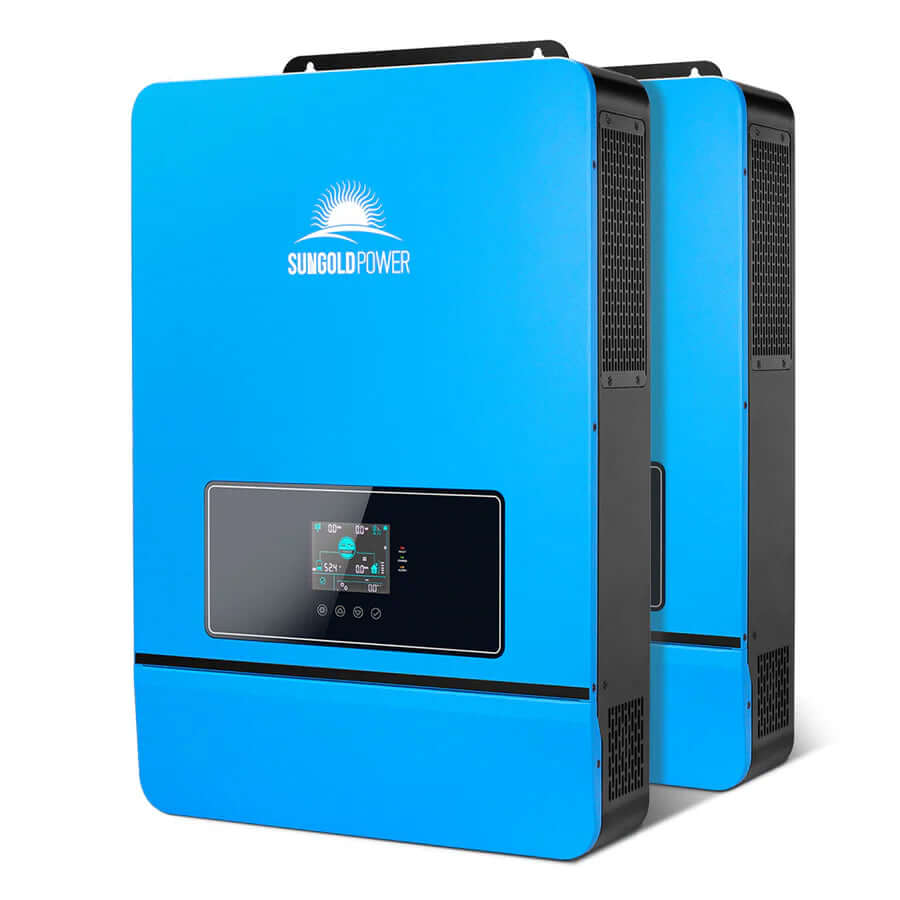

Sungold Power 20kW 48V Split Phase Solar Inverter (2 Units Parallel)

SKU SPH8048PSPH10048P
Original price $3,860.00 - Original price $3,860.00
Original price
$3,860.00
$3,860.00 - $3,860.00
Current price $3,860.00

In Stock & Ready to Ship

All orders are shipped within 1-2 business days. Product ETA 7-14 business days.

Sungold Power 20kW 48V Split Phase Solar Inverter (2 Units Parallel)

Highlight:

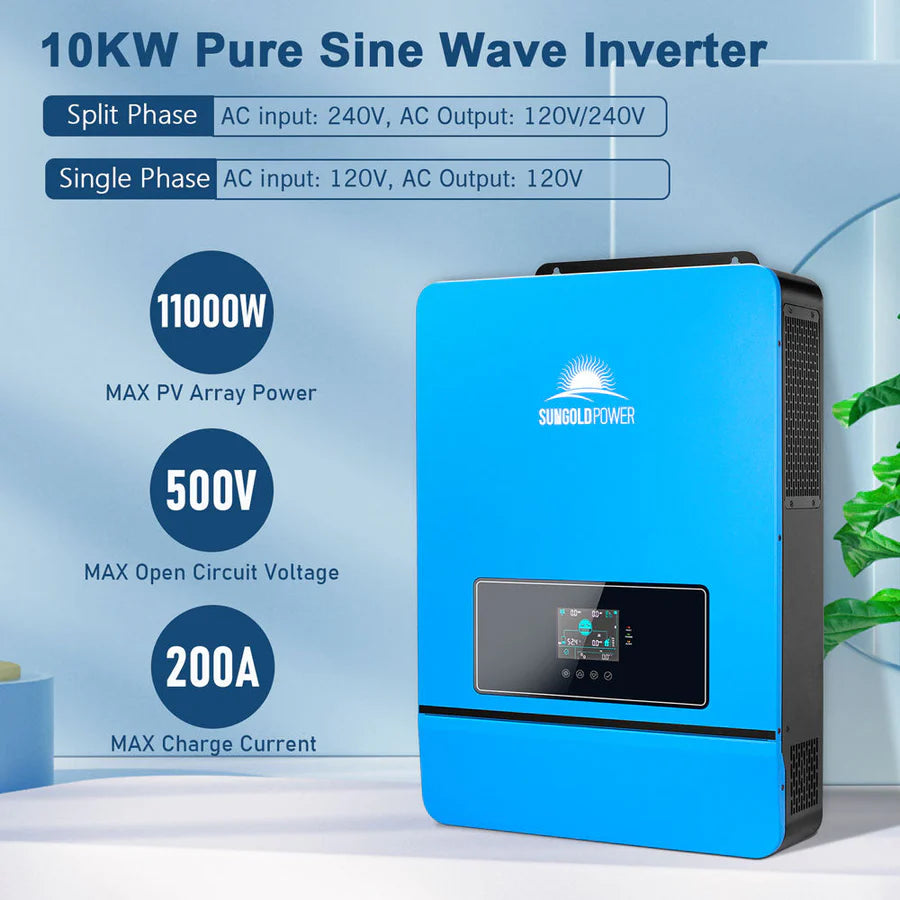

  • ★ All in one unit: 10KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt, Max. Voltage of Open Circuit : 500VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP,UL1741 Listed by ETL.

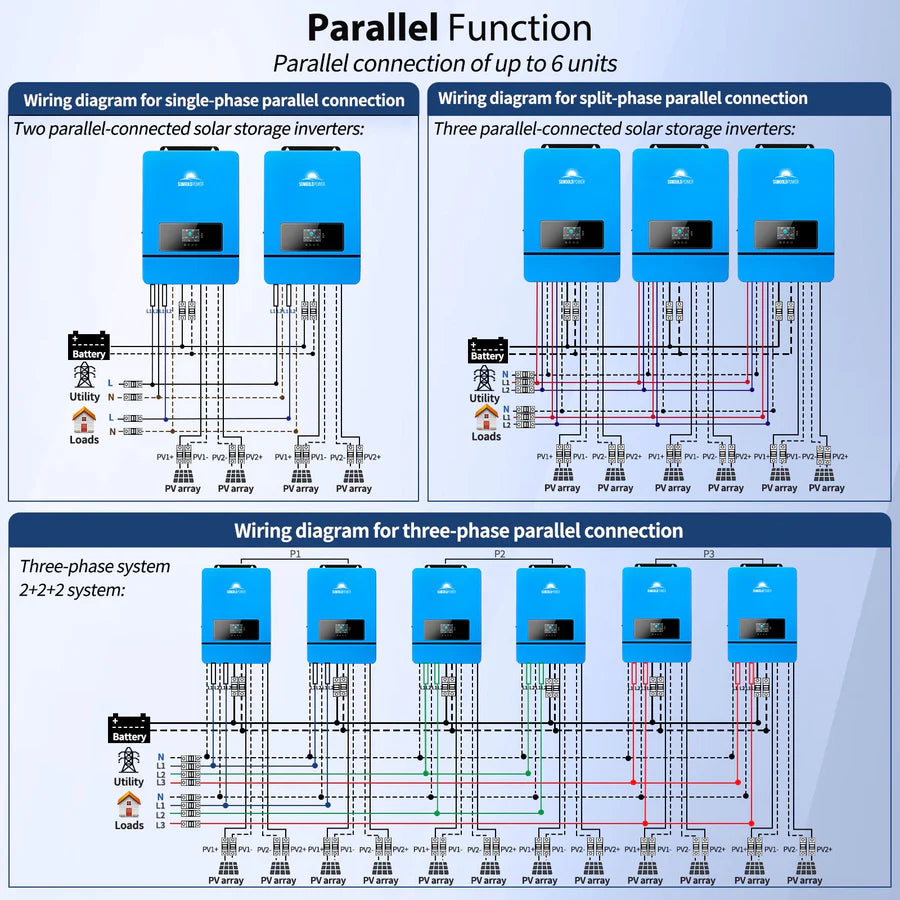

  • ★ Parallel Kit: Parallel 6 units up to 48KW power output, you will get 120V single phase / 120V/240V Split Phase or 208V 3-Phase Support (more than 3 unit in parallel), increases the inverter power and surge capacity.
  • ★ Stable AC output and Smart Protection: Rated Output Power:10000W, Max Peak Power:20,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.

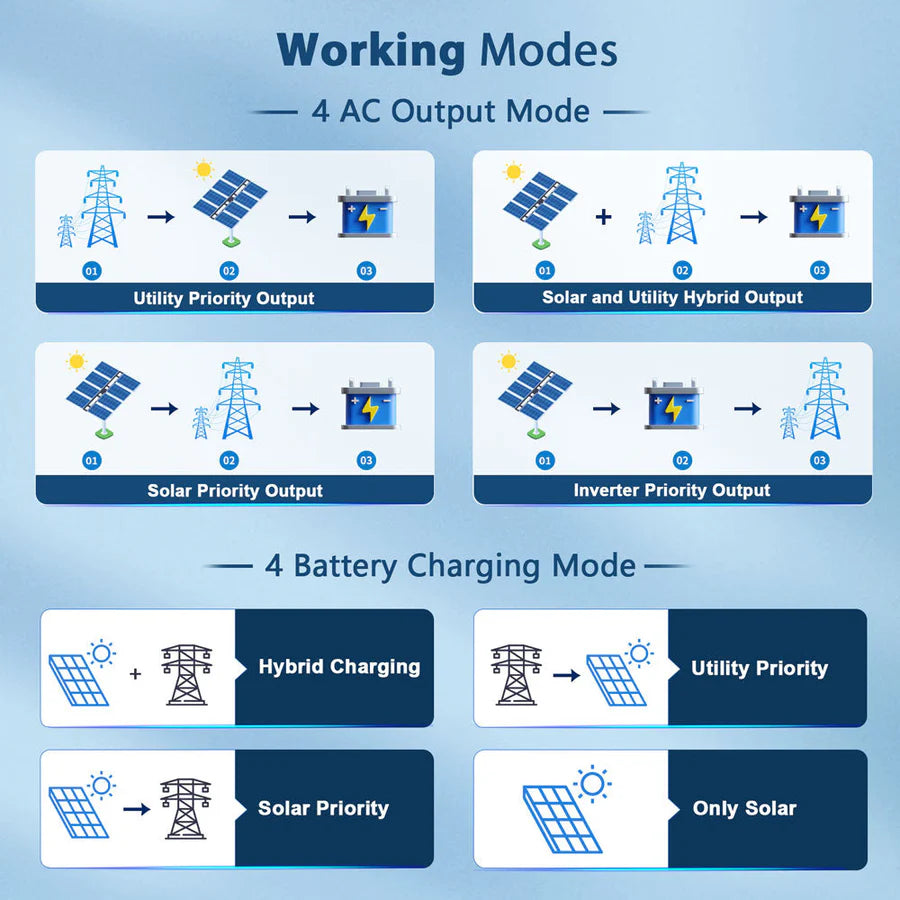

  • ★ Four charging / Output modes: Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes:  Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

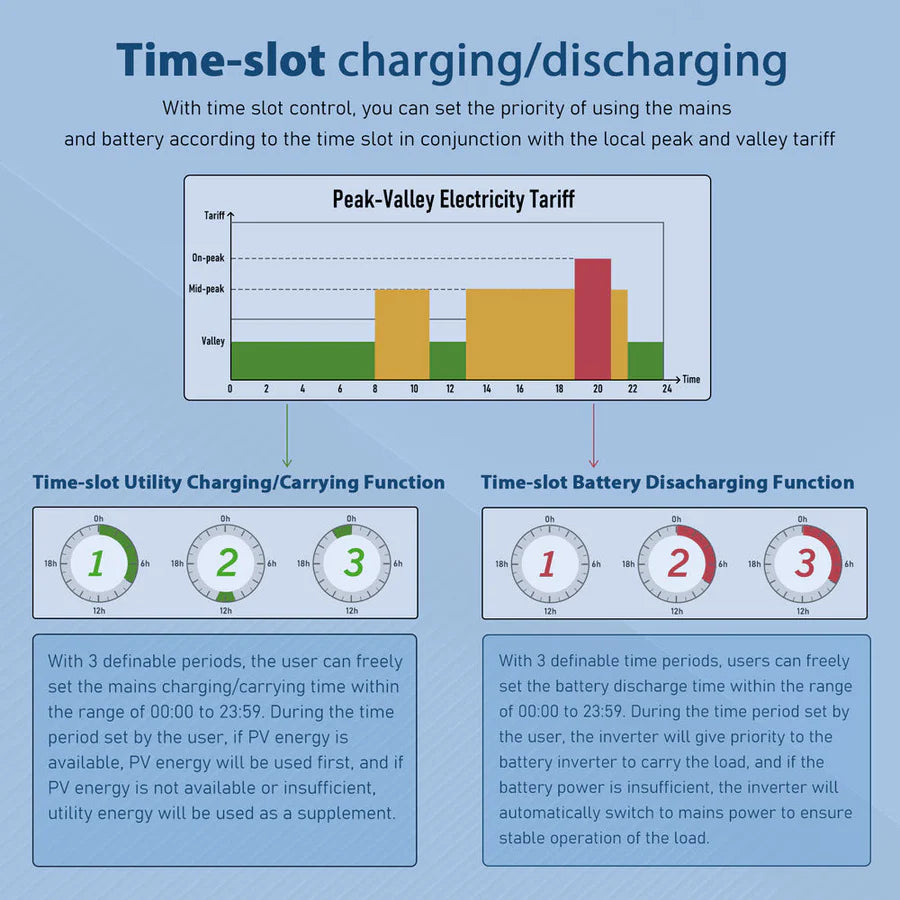

  • ★ Time-slot charging/discharging function: The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.
  • ★ Battery type: 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. and supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.

    Feature:


    详情01-10KW两个.jpg__PID:d2d4209a-6bfa-44bd-bf67-81db47b15865
    10KW-02.jpg__PID:a28044d7-26f4-46f6-9ff9-020a4f6a5507

    WIFI MONITORING

    Configured with Wi-Fi components, allowing user to quick and easy access to inverter data on mobile phone.

    2_76ecbeec-4102-4dfd-acce-50c64ace5927__PID:e8b3073a-d39c-4a4c-bc9d-c4783fcff8ca
    10kw-4__PID:073ad39c-ba4c-4c9d-8478-3fcff8ca9aa2
    810kw-10__PID:f8ca9aa2-21ff-4ac4-92bc-828f97dab671

    SYSTEM CONNECTION

    PV can charge the battery and supply the power to the load by inverter, if PV or battery is no power, you can power the load and charge the battery by the grid or generator.

    10KW-05.jpg__PID:209a6bfa-f4bd-4f67-81db-47b15865dc88
    10kw-06_da6a49ee-a380-47ad-b104-8cb720fcec70__PID:d39cba4c-fc9d-4478-bfcf-f8ca9aa221ff

    GRID TIED FUNCTION

    An off-grid solar inverter with solar panels that generates electricity, stores that power in solar batteries, and runs independently from the power grid.

    10kw-08_58d79f62-a9d2-4d06-8446-da12a0e3dce7__PID:6bfaf4bd-bf67-41db-87b1-5865dc888c9b
    10kw-07_3656e291-5e5c-463c-b713-6110f4bd12ae__PID:ba4cfc9d-c478-4fcf-b8ca-9aa221ff1ac4
    10KW-09.jpg__PID:7f787083-e115-4133-bae8-0d5f1a07ef40

    Specifications:

    MODEL-8000W-并联-1.jpg__PID:9fd8d2d4-209a-4bfa-b4bd-bf6781db47b1
    MODEL-8000W-1-1_02.jpg__PID:91098a1b-d52a-4d84-8fdb-887b7f13ee57
    MODEL-8000W-1-2.jpg__PID:22448b44-4117-4bfe-abb8-3ee3c99a14b8
