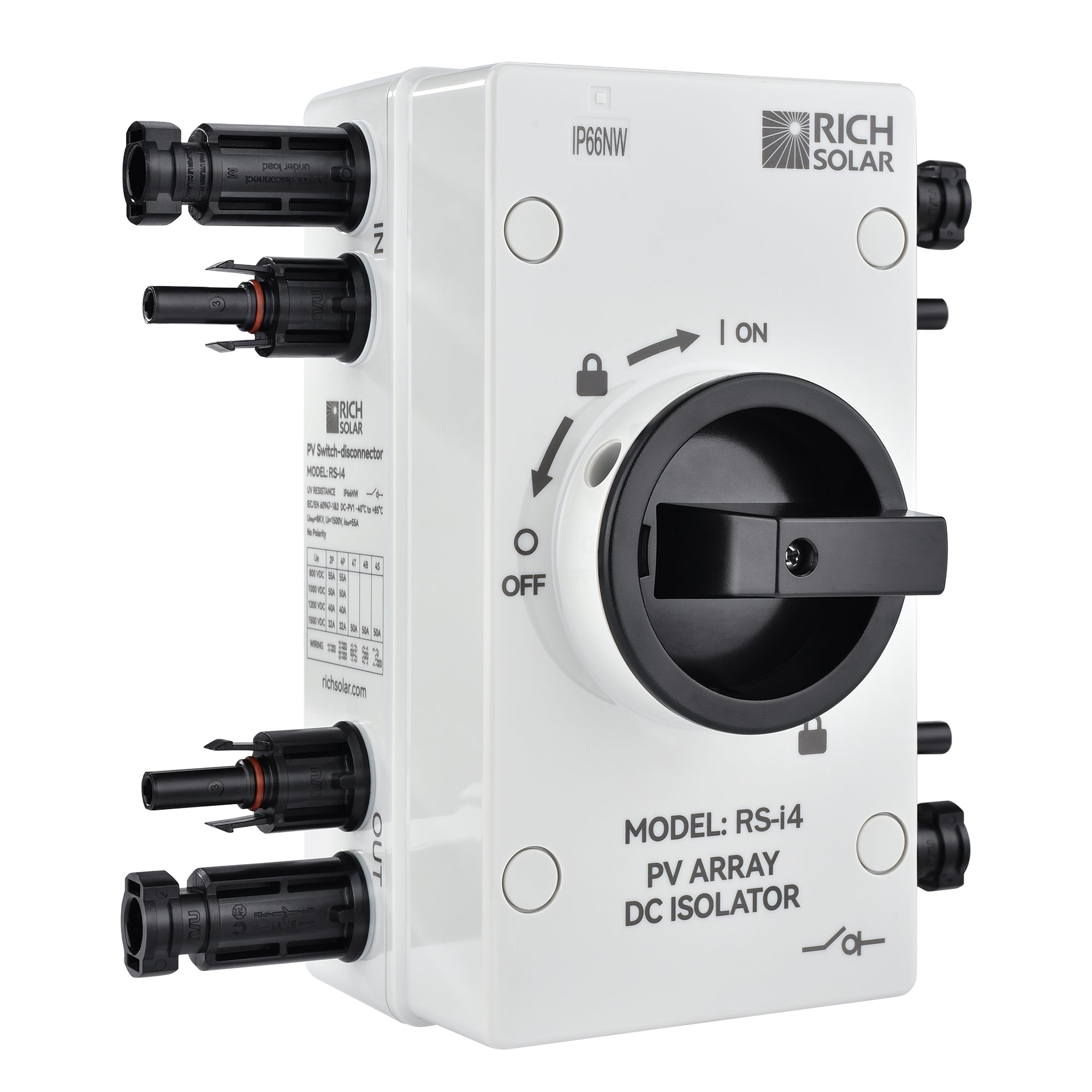

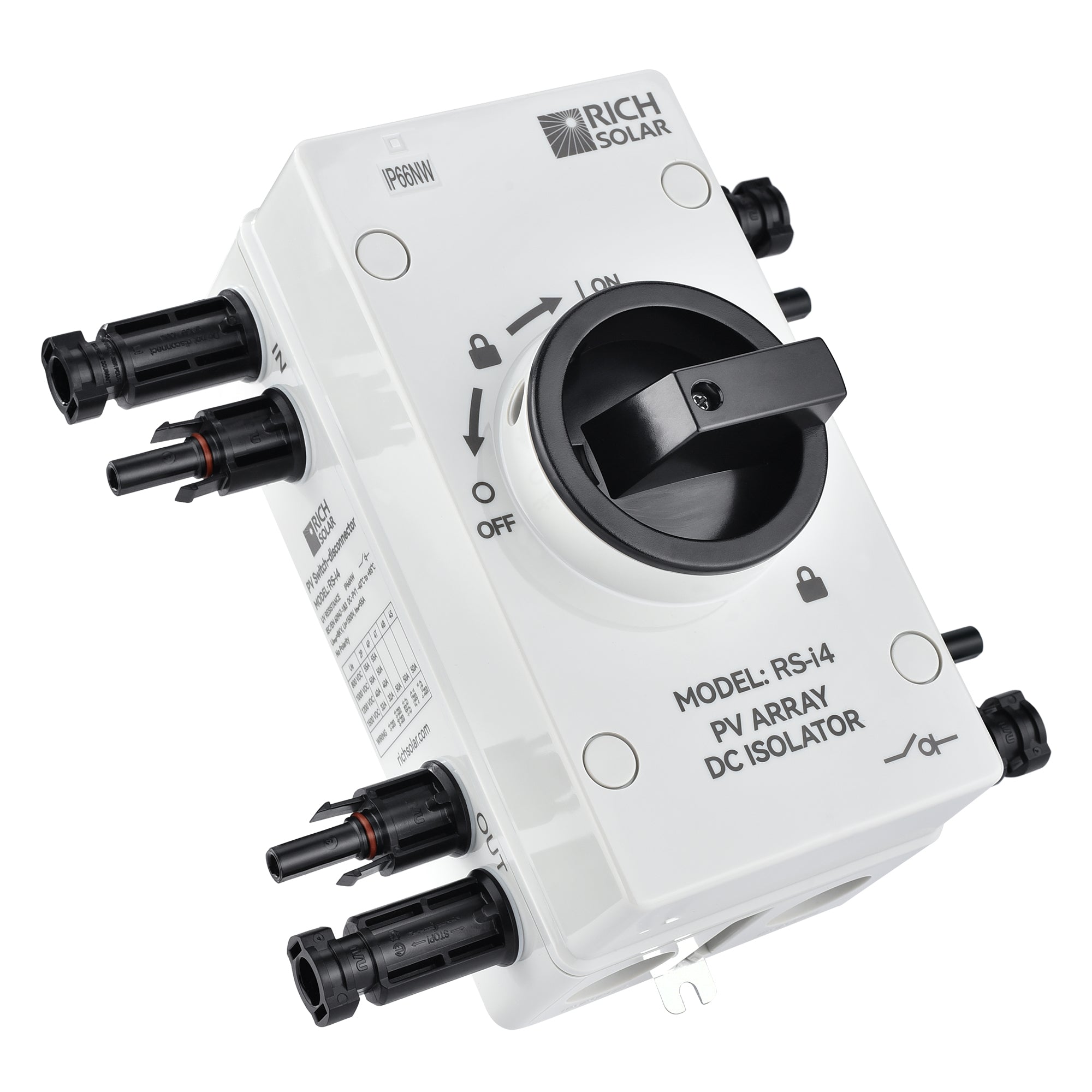

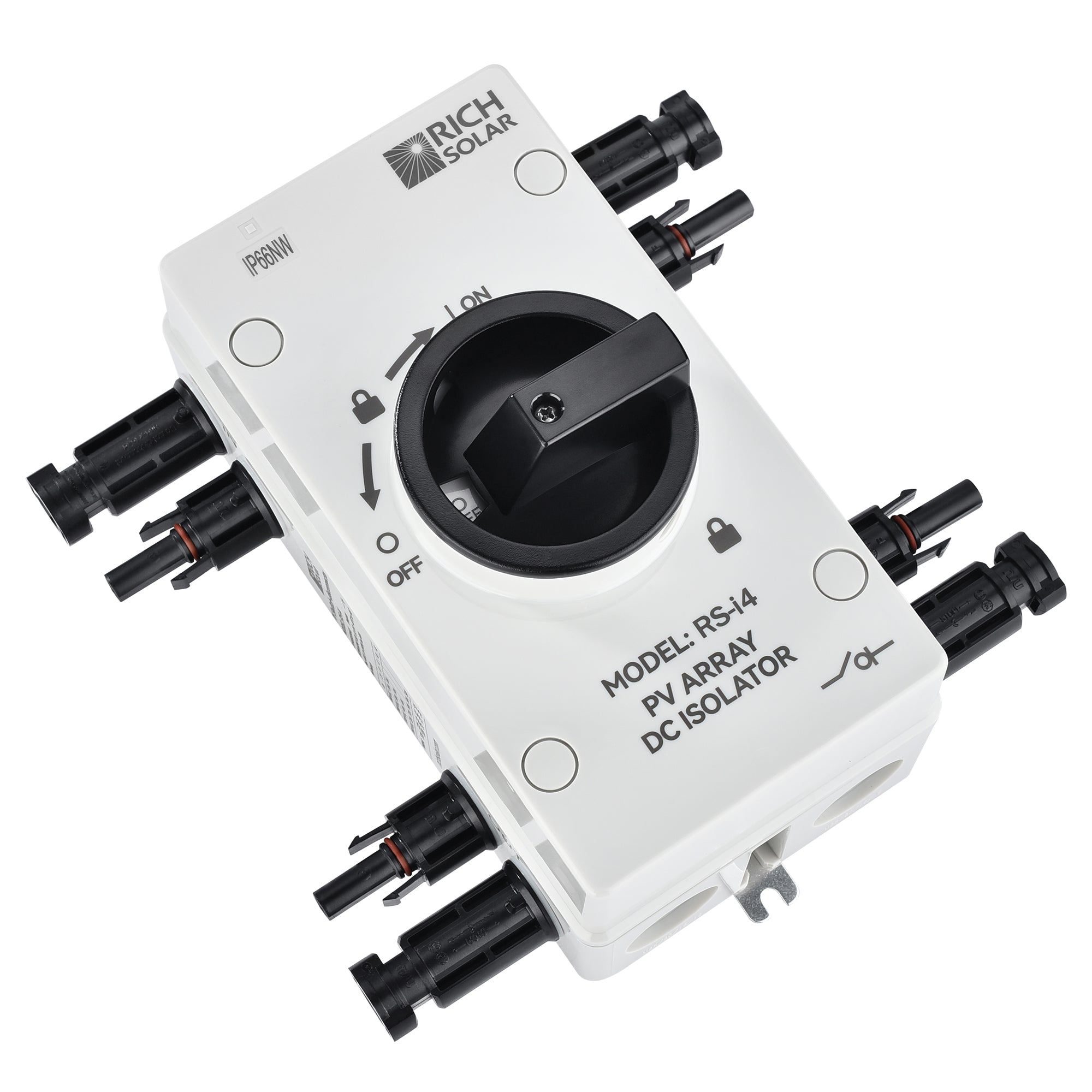

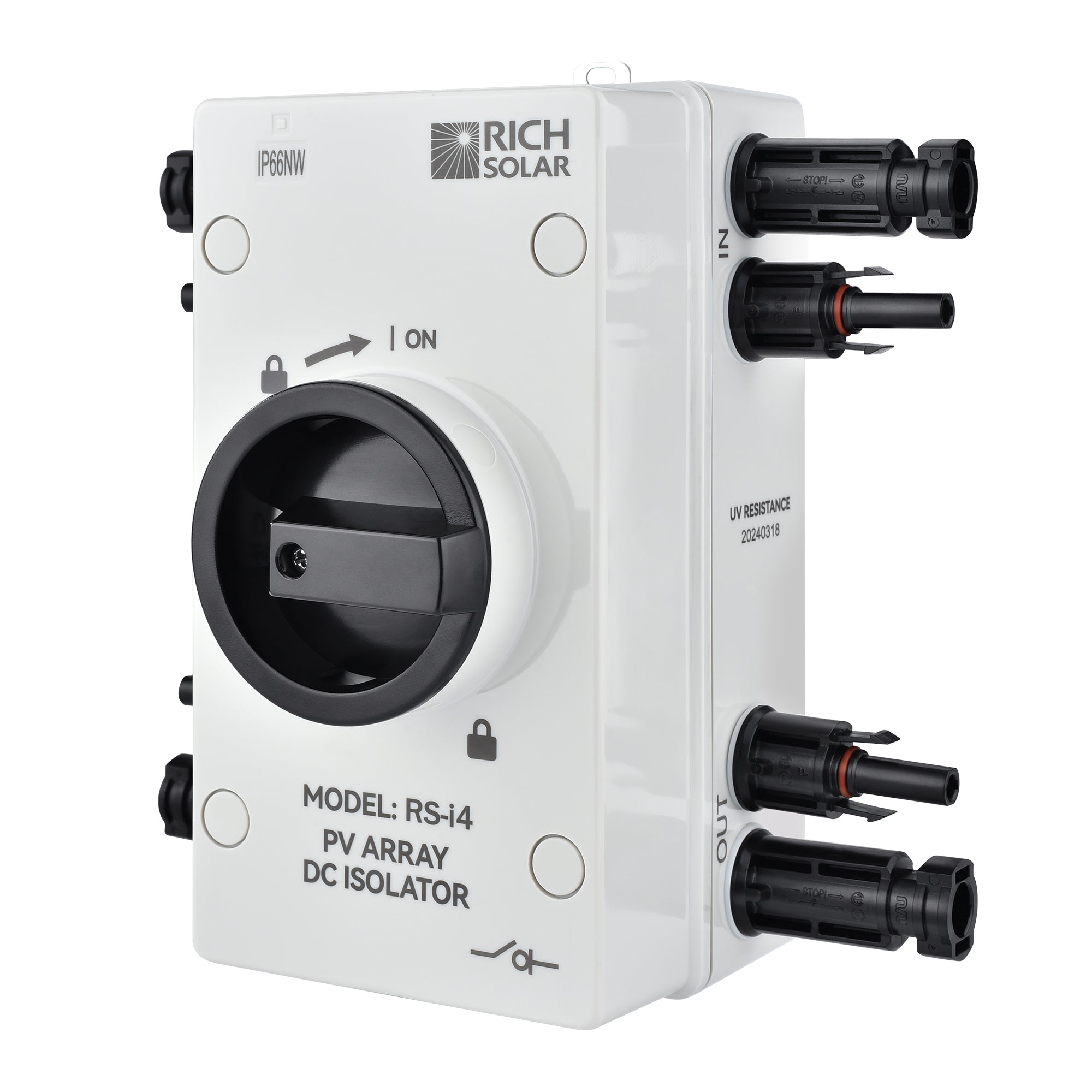

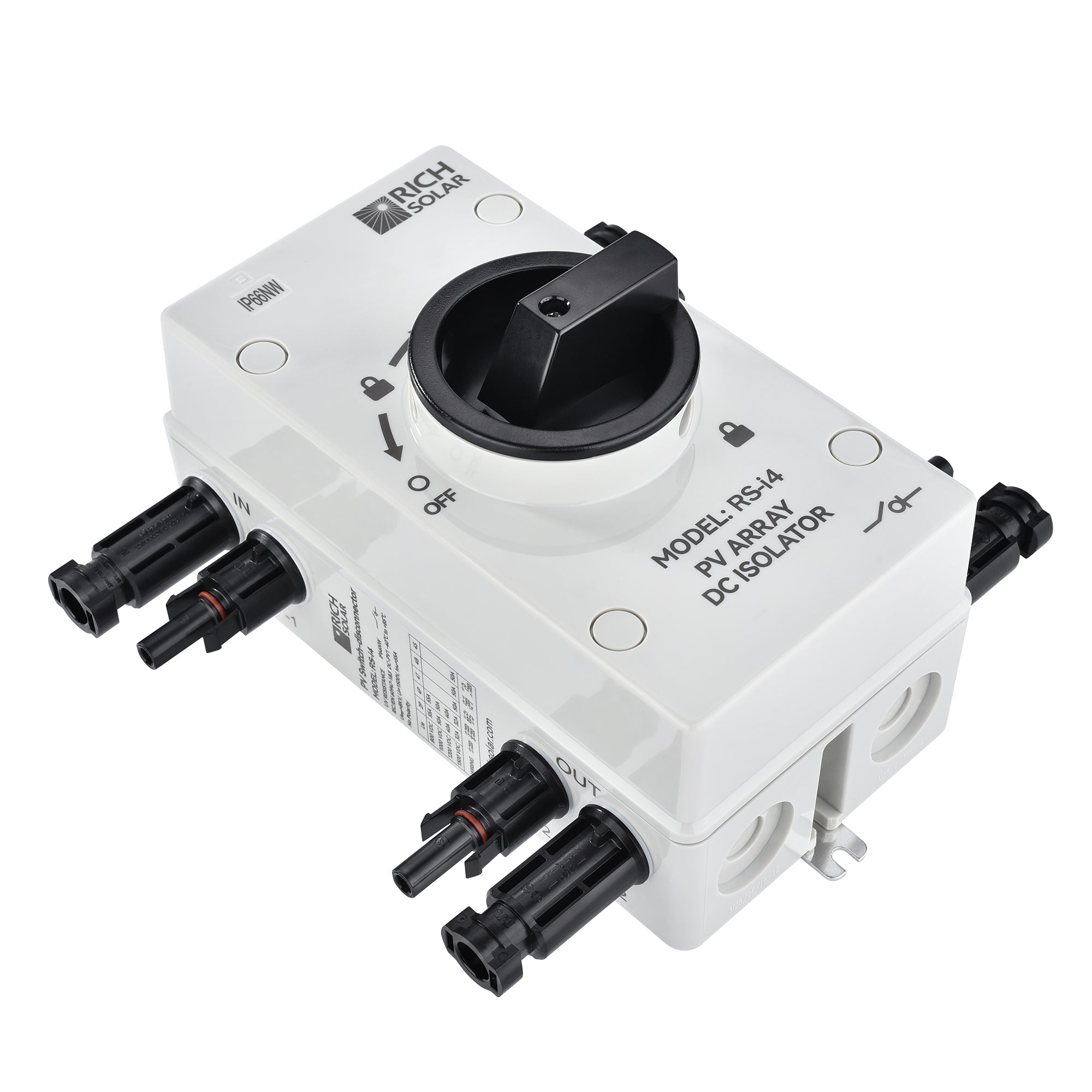

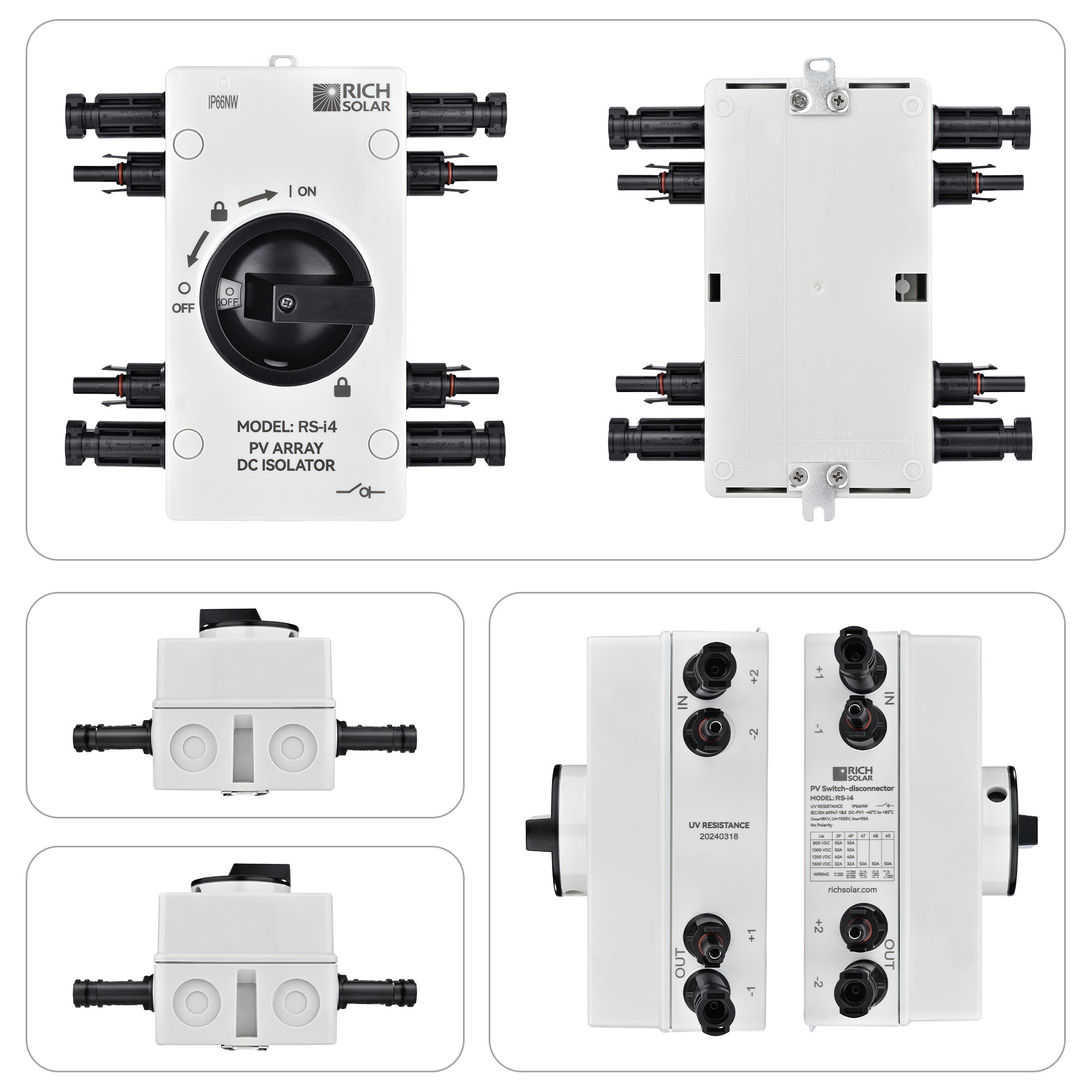

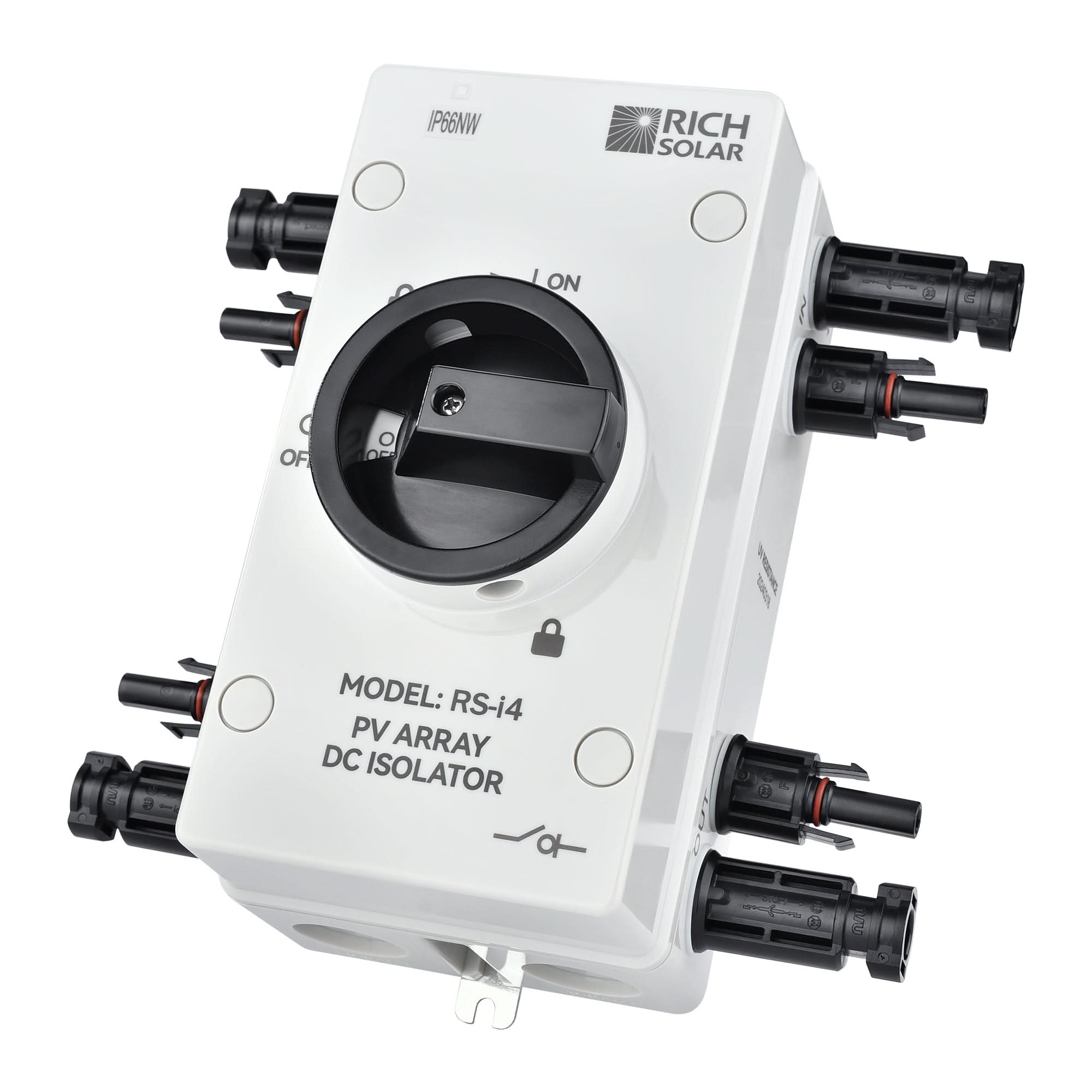

Rich Solar Solar PV DC Quick Disconnect Switch 1200V 32 Amps

SKU RS-i4
Original price $109.99 - Original price $109.99
Original price
$109.99
$109.99 - $109.99
Current price $109.99

In Stock & Ready to Ship

All orders are shipped within 1-2 business days. Product ETA 7-14 business days.

The Solar Quick Disconnect Switch is a valuable addition to solar systems, providing convenience, safety, and flexibility during maintenance or when temporary disconnection is needed. It offers the following features:

Quick Disconnection of DC Power: The switch allows for the rapid disconnection of DC power from the solar array to the charge controller, batteries, and/or inverter. This feature is crucial for safe and efficient maintenance procedures.

Outdoor Rated: The switch is designed to withstand outdoor conditions, making it suitable for installations in various environments.

Off and On Grid Applications: It is versatile and can be used in both off-grid and grid-tied solar systems, adding flexibility to the installation.

Isolated SAFE-LOCK: The switch has an isolated SAFE-LOCK mechanism with three rotational positions, reducing the risk of tampering or accidental disconnection.

Single Pull Double Throw 2IO: The switch features a single pull double throw configuration with 2 input/output connections, ensuring efficient and reliable switching.

Fast Arc Suppression: The switch is designed to ensure the disconnection of load circuits and suppress arcs in under 5 milliseconds, enhancing safety during operation.

Lock Out Option: It likely includes a lock-out option, providing an additional layer of security to prevent unauthorized access.

Max Amperage: The switch can handle a maximum amperage of 32 amps, making it suitable for both small and large off-grid or grid-tied solar systems.

Easy Set Up and Installation: The output and input connections are designed for easy set up and installation, saving time and effort during the setup process.


Specifications

  • 1 - 32 amp circuit
  • Up to 1200 volts @ 32 amps
  • 2 pole and 1 string
  • TUV, SAA, CE, IP certified & ROHS compliant
  • Outdoor rated
  • Non-corrosive
  • Waterproof
  • Arc time <2ms
  • -40 degrees C to 70 degrees C
  • 10 year warranty Dimensions:
  • 4"H x 9 3/8"W x 3 1/4" D
