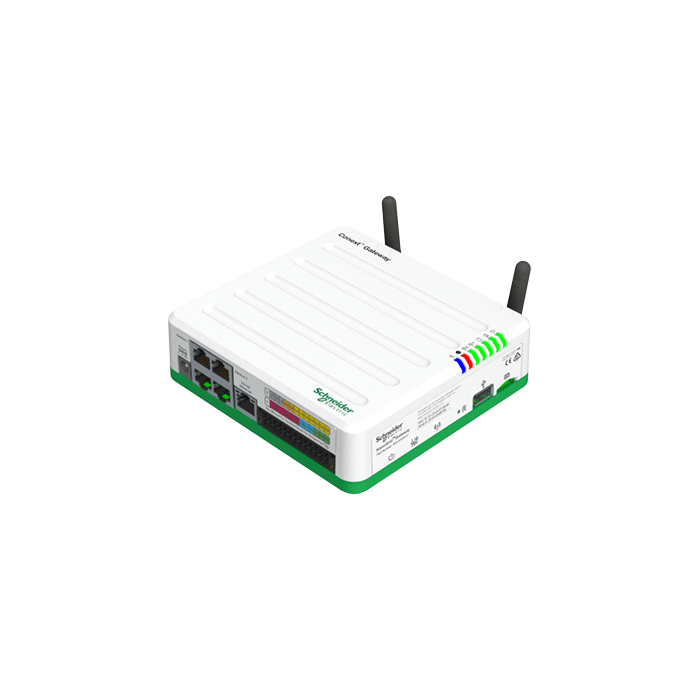

Schneider Conext Gateway System Configuration

SKU RNW8650329
Original price $499.00 - Original price $499.00
Original price
$499.00
$499.00 - $499.00
Current price $499.00

In Stock & Ready to Ship

All orders are shipped within 1-2 business days. Product ETA 7-14 business days.

Introducing the ConextTM Gateway, a cutting-edge solution that brings seamless local system configuration, management, and live monitoring to both residential and commercial solar products. Streamlining the installation and setup process, this gateway features wireless connectivity and user-friendly configuration tools for accelerated system deployment.

Designed to offer enhanced insights into solar system performance, the ConextTM Gateway boasts updated graphing and reporting interfaces. This ensures users have a more intuitive and comprehensive understanding of their solar systems.

The ConextTM Gateway, in collaboration with ConextTM Insight 2, extends its capabilities to the cloud, enabling advanced system monitoring and remote management. With a focus on user convenience and advanced functionality, this gateway represents a significant step forward in optimizing the efficiency and performance of solar energy systems.

Electrical Specifications
Power Consumption 2 W average / 10 W peak
AC/DC Adapter (Supplied) Input: 100-240V AC, 50-60Hz, 0.6A,<br>Output: 12V DC, 1.5A, 5.5mm outer, 2.1mm center-positive jack
Xanbus When connected to Conext XW Pro / SW or MPPT 80 600 providing network power<br>24V on 26-pin connector: 24V DC, 1A max input only through pins 1 and 2<br>Accepts 16 - 24 AWG pin wire size
Physical Specifications
Part Number 865-0329
Weight (Device Only) 340 g / 0.75 lb
Dimensions (Device Only) (W × H × D) 134 x 137.4 x 48.5 mm / 5.3 × 5.4 × 1.9 inches
Shipping Package Dimensions 158 × 158 × 188 mm / 6.2 × 6.2 × 7.4 inches
Shipping Package Weight 2 kg / 4.5 lb
Housing / Mounting System ABS Plastic / 35-mm DIN rail clip
IP Rating / Mounting Location IP 20, NEMA 1, Indoor only
Status Display 7 x LEDs
Temperature
Operating -4 to 122 °F / -20 to 50 °C
Storage -40 to 185 °F / -40 to 85 °C
Maximum Case Temperature 140 °F / 60 °C
Humidity Operating: < 95%, non-condensing<br>Storage: <95%
Features
Programmable Dry Contact Relay Screw 3-terminal, 16-24 AWG, NC-Com-NO, Form: Class 2, 24 V DC, 4 A max SELV input only
Graphical User Interface Internet Browser
Remote Firmware Upgrades Yes (Conext Gateway and connected Xanbus devices)
Custom Data Logger Yes
Max. Number of Xanbus Devices Up to 20 (depending on the device type)
Micro-SD Card (Supplied) Read-only
Regulatory
EMC Immunity EN61000-6-1
EMC Emissions EN61000-6-3, FCC Part 15 Class B, Ind. Canada ICES-003 Class B
Substances / Environmental RoHS
