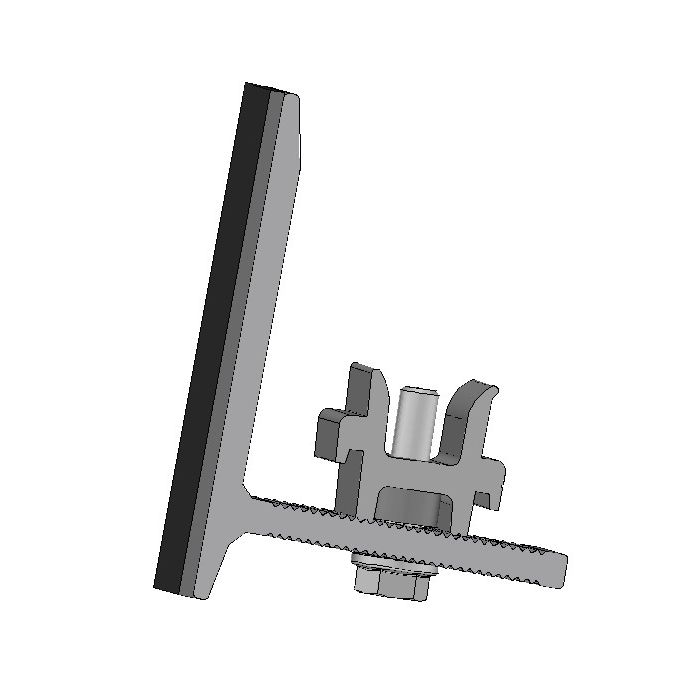

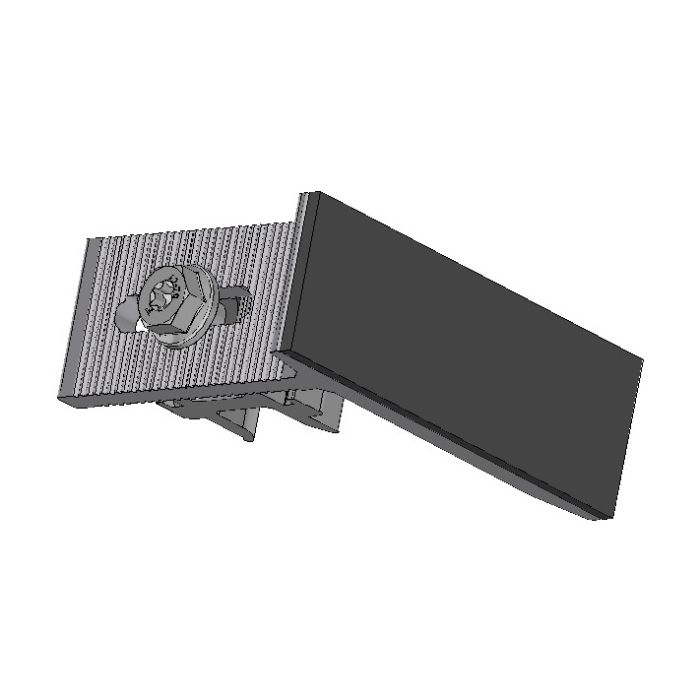

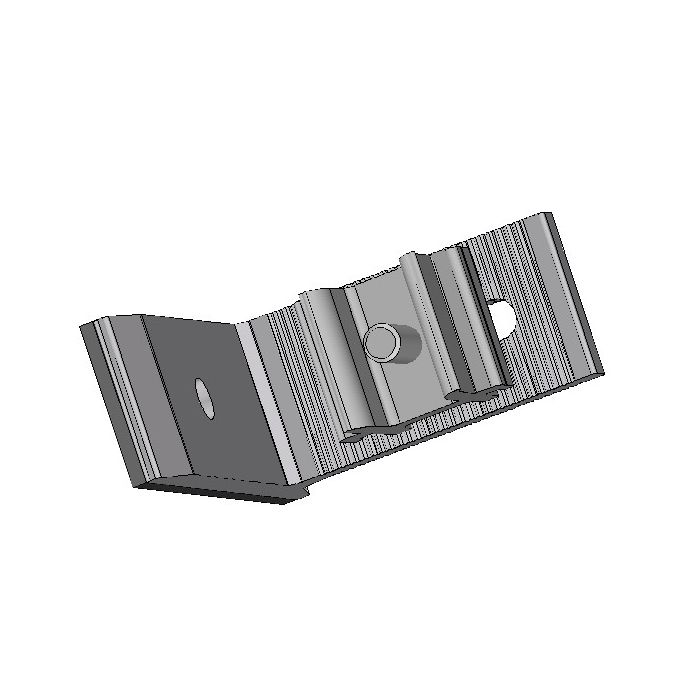

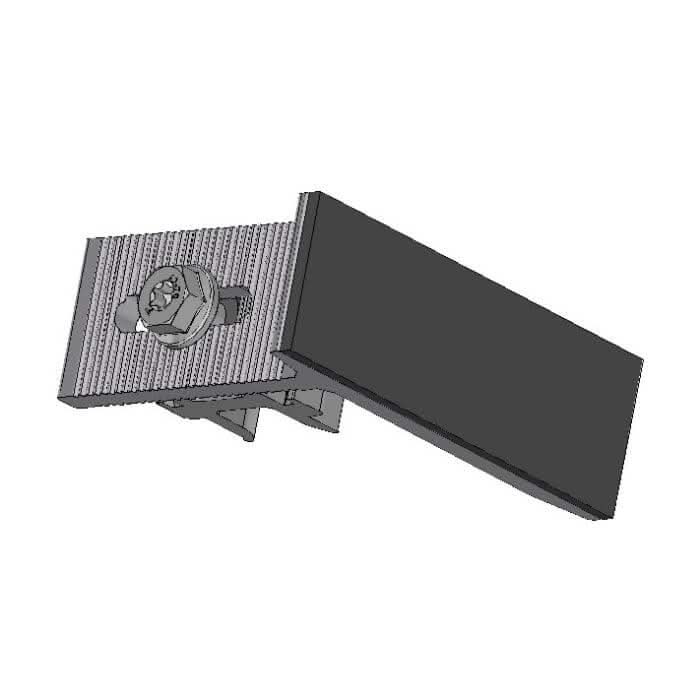

Schletter Rapid2+ Pro SML
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.
Designed for use on roofs with both metal and bitumen shingles, including trapezoidal and corrugated roofs.
No requirement to cover the roof during roof hook installation.
The module beam is adjustable in height.
OPTIMAL LOAD DISTRIBUTION The unique design of this special roof hook, with its extended base, minimizes forces on the roof sheet. This ensures effective load distribution into the substructure. The UV-resistant EPDM rubber underlay ensures complete water tightness.
MINIMIZING INSTALLATION EFFORT With Rapid²+ Pro SML, there's no need to cover the roof during roof hook installation. These hooks are directly screwed onto the roof covering. The height-adjustable module beams make installation easy, even on uneven or wavy roofs. These practical features significantly reduce installation costs.
| Technical Specifications | |
|---|---|
| Scope of Application | Roofs with metal and bitumen shingles, trapezoidal and corrugated roofs with timber or metal substructure |
| Material | - Fastening elements: Aluminium - Screws: Stainless steel - Sealing rubber: EPDM |
| Planning Aid | Configuration and structural analysis via Schletter Configurator |
| Structural Analysis | - Based on recognized engineering standards - Verification of structural safety complies with Eurocodes and general construction approvals - Load assumptions comply with DIN EN 1991-1 and national annex regulations - Roofing and building certificates not included. Compliance with required certification and approval instructions is essential. |
| Required Tools | TORX T40 |
| Warranty | 25 years on structural components, according to warranty terms |
| Supplementary Documents | - Assembly instructions for Rapid²+ Pro SML - Component overview for Roof hooks, special design |
