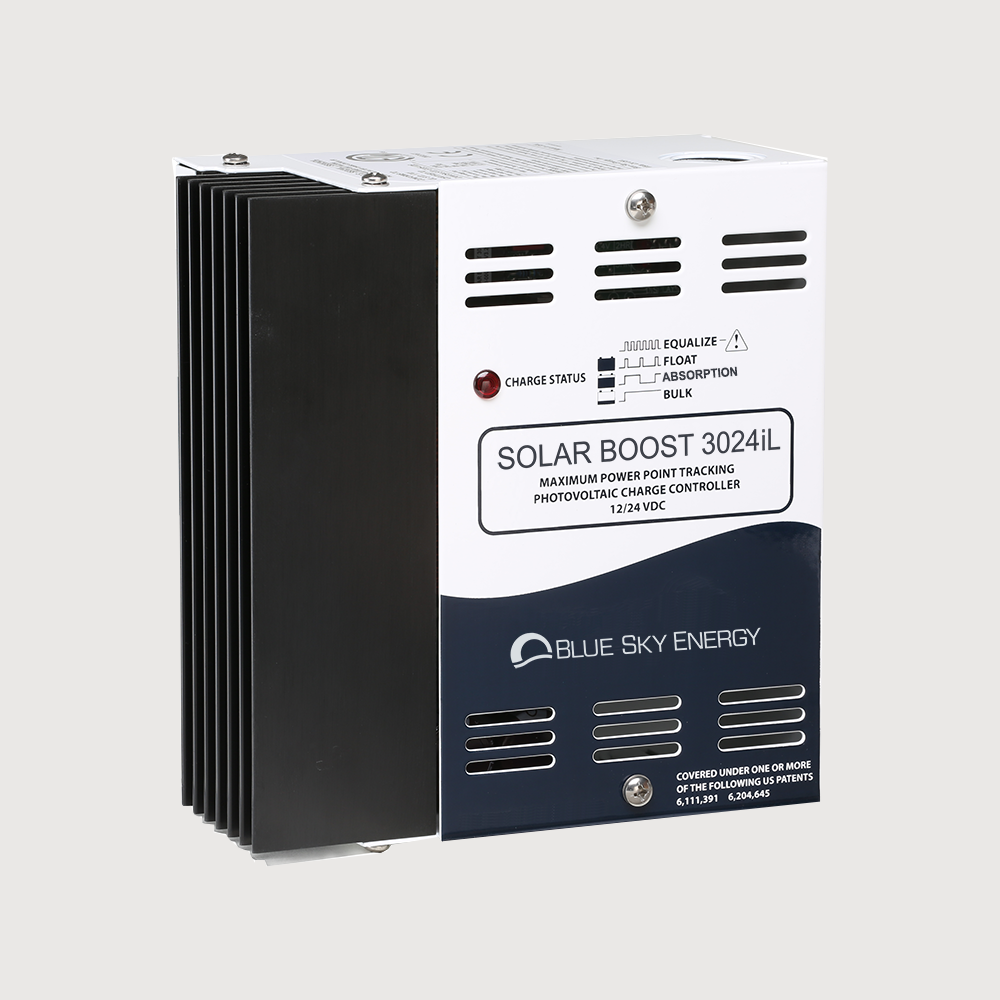

Sunforge SB3024iL with DUO-Option to provide diversion type charge control for Wind, Hydroelectric, or excess PV input
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.
The SB3024 charge controller family, incorporating patented MPPT (Maximum Power Point Tracking) technology, is an excellent choice for medium-sized solar systems. With the ability to handle up to 800 W of PV (Photovoltaic) power when charging at 24V, this controller is particularly well-suited for applications such as RVs and marine setups. It boasts several features that make it versatile and reliable for various energy needs.
High Power Handling: The SB3024 charge controller family is designed to efficiently manage up to 800 W of PV power when operating at a 24V charging voltage. This power handling capability makes it suitable for medium-sized solar setups, offering substantial energy harvesting potential.
Auxiliary Output: One notable feature is the auxiliary output designed for charging a second battery. This is particularly beneficial for RVs and marine applications where multiple batteries are often used to meet different energy demands.
Remote Display Compatibility: The controller features IPN connectivity, allowing it to be used with a remote display. This remote display facilitates monitoring and control of the charge controller from a distance, enhancing user convenience.
DC Load Output: The SB3024iL variant of the controller can manage a DC load output of up to 20A. This feature allows you to power various DC loads directly from the controller, increasing system flexibility.
Smart Load Control for PV Street Lighting: When programmed using the IPN ProRemote, BT Connect, or UCM, the controller can be employed for PV street lighting applications. It includes a smart dusk-to-dawn load control feature, optimizing energy consumption and extending battery life.
IPN Network Interface: The IPN Network interface enables communication with other Blue Sky Energy charge controllers as part of a single charging system. This functionality enhances system design flexibility and optimization, particularly in more complex solar energy setups.
The SB3024 charge controller family is designed to cater to the needs of medium-sized solar systems, particularly in applications like RVs, marine setups, and PV street lighting. Its MPPT technology, auxiliary output for multiple battery charging, remote display compatibility, and various load control features contribute to its versatility and effectiveness in managing solar energy and optimizing system performance. The ability to communicate with other charge controllers via the IPN Network interface further enhances its capabilities in system design and coordination.
Specifications
| Specification | SB3024(D)iL @12V | SB3024(D)iL @24V |
| Maximum PV Power:1 | 540W with 36-cell PV panel | 800W with 72-cell PV panel |
| 400W with 60/72-cell PV panel | ||
| Rated Battery (Output) Current:1 | 40A with 36-cell PV panel | 30A with 72-cell PV panel |
| 30A with 60/72-cell PV panel | ||
| Conversion Efficiency: | 97% (typical @28V/24A output) | 97% (typical @28V/24A output) |
| Power Consumption: | 0.35W (typical standby) | 0.35W (typical standby) |
| Recommended Max Panel Voc at STC: | 45.6V (Max Panel Input 57V) | 45.6V (Max Panel Input 57V) |
| Battery Type:2 | Lead Acid (default) or LiFePO4 (set by microswitch) | Lead Acid (default) or LiFePO4 (set by microswitch) |
| Charge Profile: | Multi-Stage | Multi-Stage |
| (plus Equalization if enabled) | (plus Equalization if enabled) | |
| Absorption Voltage:2 | 14.4V | 28.8V |
| Float Voltage:2 | 13.2V | 26.4V |
| Equalization Voltage (if enabled):2 | 15.2V | 30.4V |
| Auxiliary Output: | A) Auxiliary Battery Charge 2A (2nd battery) | A) Auxiliary Battery Charge 2A (2nd battery) |
| B) Load Control w/ LVD | B) Load Control w/ LVD | |
| C) Dusk-to-Dawn w/ LVD (by IPN Remote, BT Connect) | C) Dusk-to-Dawn w/ LVD (by IPN Remote, BT Connect) | |
| Load (LVD) Disconnect/Reconnect Voltage:2 | 11.5V / 12.6V | 23.0V / 25.2V |
| Maximum Auxiliary Output Current (B or C): | 20A | 20A |
| Display: | Only version SB3024DiL or w/ remote display | Only version SB3024DiL or w/ remote display |
| Temperature Compensation (by optional Battery Temperature Sensor): | -5.00mV/°C/cell correct factor | -5.00mV/°C/cell correct factor |
| (range 0.00mV/°C/cell to -8.00mV/°C/cell) | (range 0.00mV/°C/cell to -8.00mV/°C/cell) | |
| Operating Temperature: | -40°C - 40°C | -40°C - 40°C |
| Maximum Full Power Ambient: | 40°C | 40°C |
| Environmental Protection: | IP20 | IP20 |
| Weight: | 3.95lb (1.8kg) | 3.95lb (1.8kg) |
| Dimensions: | 6.86" x 6.6" x 3.38" | 6.86" x 6.6" x 3.38" |
| (17.4cm x 16.8cm x 8.6cm) | (17.4cm x 16.8cm x 8.6cm) | |
| Warranty: | 5 years | 5 years |
