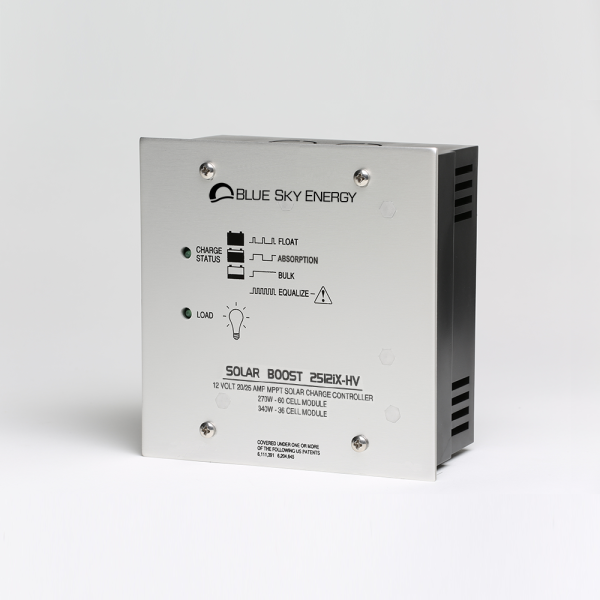

Experience a new era of solar energy management with the SB2512iX-HV(-Li) MPPT Solar Charge Controller from [Company Name]. This groundbreaking controller, equipped with our patented Maximum Power Point Tracking (MPPT) technology, is designed to revolutionize energy optimization for a variety of applications. Whether you're navigating the open road in an RV or exploring the vast oceans on a marine vessel, the SB2512iX-HV(-Li) brings efficiency, versatility, and advanced features to your solar setup.
Patented MPPT Technology: Our patented MPPT technology sets the SB2512iX-HV(-Li) apart, enabling you to extract the maximum available energy from your solar panels. This innovative technology ensures that your energy production is consistently optimized.
Enhanced Battery Output: The SB2512iX-HV(-Li) boasts a second auxiliary battery output, providing greater flexibility for energy distribution. This feature is particularly beneficial for RVs and marine applications, where multiple energy storage options are essential.
Remote Display and Bluetooth Connectivity: With the integrated IPN connector, the SB2512iX-HV(-Li) offers seamless compatibility with remote displays or Bluetooth adapters. Monitor and control your solar system remotely, ensuring you stay connected to your energy generation and consumption.
Ideal for Various Applications: Perfectly suited for RVs and marine environments, the SB2512iX-HV(-Li) offers a powerful 25A @12V DC Load Output, making it well-suited for medium-sized off-grid electrification projects. Its versatility is further enhanced by its ability to be programmed for PV street lighting with dusk-to-dawn load control using the IPN ProRemote, BT Connect, or UCM.
Battery Compatibility: The SB2512iX-HV is optimized for Lead Acid batteries, while the SB2512iX-HV-Li version is tailored for charging 4S LiFePO4 batteries. Both versions can be easily customized for different battery types using a remote display, UCM, or BT Connect.
Seamless Customization: Customize your solar charge profile to perfectly match your battery type and application using the remote display, UCM, or BT Connect. This ensures optimal charging, extended battery life, and overall system performance.
Discontinued Basic Version: The basic SB2512i-HV version has been discontinued, paving the way for the advanced features and capabilities of the SB2512iX-HV(-Li) MPPT Solar Charge Controller.
Embrace the Future of Solar Power Management: The SB2512iX-HV(-Li) MPPT Solar Charge Controller is not just a controller; it's a game-changer. From its unmatched efficiency to its tailored battery compatibility and advanced remote monitoring options, it's the ultimate solution for energy optimization in mobile and off-grid scenarios. Whether you're on land or sea, trust [Company Name] to empower your energy journey with the SB2512iX-HV(-Li) MPPT Solar Charge Controller.
Specifications
Specification | SB2512iX-HV | SB2512iX-HV-Li |
---|---|---|
Maximum PV Power:1 | 340W with 36-cell PV panel 270W with 60-cell PV panel |
340W with 36-cell PV panel 270W with 60-cell PV panel |
Rated Battery (Output) Current:1 | 25A with 36-cell PV panel 20A with 60-cell PV panel |
25A with 36-cell PV panel 20A with 60-cell PV panel |
Conversion Efficiency: | 96% (typical @14V/20A output) | 96% (typical @14V/20A output) |
Recommended Max Panel Voc at STC: | 40V (Max Panel Input 50V) | 40V (Max Panel Input 50V) |
Power Consumption: | 0.30W (typical standby) | 0.30W (typical standby) |
Charge Profile:2 | Multi-stage | Multi-stage |
Battery Type: | 12V Lead Acid | 4S LiFePO4 |
Absorption Voltage:2 | 14.2V | 14.4V |
Float Voltage:2 | 13.2V | 13.6V |
Temperature Compensation (by optional Battery Temperature Sensor): | -5.00mV/°C/cell correct factor (range 0.00mV/°C/cell to -8.00mV/°C/cell) |
Disabled |
Equalization Voltage (if enabled):2 | 15.2V (Automatic or Manual Equalization) | Disabled |
Auxiliary Output: | A) Auxiliary Battery Charge 2A (2nd battery) B) Load Control w/ LVD C) Dusk-to-Dawn w/ LVD (by IPN Remote, BT Connect) |
A) Auxiliary Battery Charge 2A (2nd battery) B) Load Control w/ LVD C) Dusk-to-Dawn w/ LVD (by IPN Remote, BT Connect) |
Load (LVD) Disconnect/Reconnect Voltage: | 11.5V / 12.6V | 11.0V / 12.0V |
Maximum Auxiliary Output Current (B or C): | 25A | 25A |
Display: | w/ IPN ProRemote, ProTouch, or IPN Remote | w/ IPN ProRemote, ProTouch, or IPN Remote |
Operating Temperature: | -40°C - 45°C | -40°C - 45°C |
Maximum Full Power Ambient: | 45°C | 45°C |
Environmental Protection: | IP20 | IP20 |
Weight: | 0.87lb (395g) | 0.87lb (395g) |
Dimensions: | 5.3" x 5.3" x 2.5" (13.5cm x13.5cm x 6.35cm) | 5.3" x 5.3" x 2.5" (13.5cm x13.5cm x 6.35cm) |
Warranty: | 5 years | 5 years |
