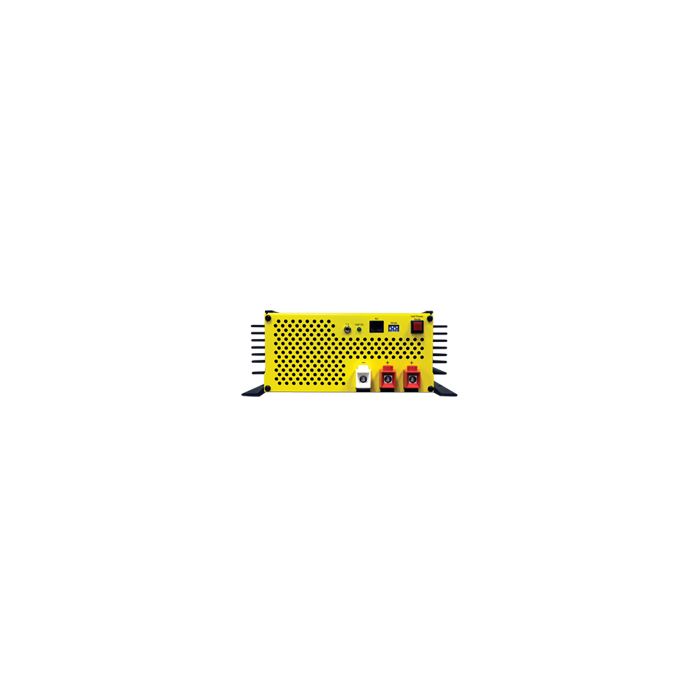

Samlex 3 Stage 12 Volt 80 Amp Battery Charger Safety Listed

This advanced 80 Amp battery charger boasts a fully automatic three-stage design, catering to a wide range of 12 Volt lead-acid batteries, including Flooded, Absorbed Glass Mat (AGM), and Gel Cell types. Its versatility extends to accommodating a 120 V, 60 Hz or 230 V, 50 Hz AC power source. With a convenient DIP switch setting, it seamlessly transitions to a two-stage algorithm, ideal for charging batteries connected to a DC load (DC UPS). Moreover, the unit doubles as a DC Power Supply, offering a myriad of functionalities.

Key Features:

1. Switch Mode Technology: Ensures high efficiency, lightweight construction, and quiet operation.
2. Automatic Operation for All Lead Acid Batteries: Whether Flooded, AGM, or Gel Cell, the charger caters to all types.
3. Dual Bank Charging: Simultaneously charges two separate battery banks without the need for an isolator.
4. Power Supply and DC UPS Capability: Functions as a reliable power supply or DC UPS when paired with a battery.
5. User Configurable AC Input Voltage: Adaptable to 120 or 230 VAC and supports both 50 Hz and 60 Hz frequencies.
6. User Selectable Charging Algorithm: A DIP switch allows users to opt for a 2 or 3-stage charging process, ensuring rapid and safe charging for standalone and loaded Lead Acid Batteries.
7. Half Power Mode: Reduces maximum charging current by half, facilitating the safe charging of lower capacity batteries.
8. Monitoring Features: Equipped with a voltmeter and ammeter for real-time monitoring of charging status.
9. Fan Cooling: Temperature-dependent fan operation based on output current ensures optimal cooling performance.
10. Comprehensive Protections: Built-in safeguards include short circuit protection, overload protection, reverse battery connection protection, and over-temperature protection.
11. Temperature Sensor: Includes a temperature sensor to prevent under/overcharging of batteries in the event of extensive temperature variations.
