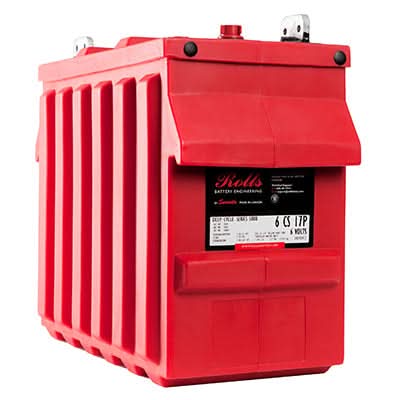

Rolls 6 CS 17P Flooded Deep Cycle Battery – Dependable Energy Storage
- Authorized Dealer – We’re officially authorized to sell every brand on our site. That means genuine products and full manufacturer warranties—no exceptions.
- Free Shipping – Get fast and free shipping on every order, anywhere in the continental U.S.
- Top-Rated Customer Support – Need help? Our friendly, U.S.-based team is here to support you before and after your purchase.
- 30 Day Money Back Guarantee – Secure SSL Checkout
Guaranteed Secure Checkout
The Rolls 6 CS 17P is a reliable flooded lead-acid deep cycle battery designed for demanding energy storage needs across renewable energy, marine, and backup power applications. Delivering a solid 733Ah capacity at the 100-hour rate, this 6-volt battery ensures dependable, long-lasting power with consistent deep cycle performance.
Built with durable polypropylene and high-density polyethylene containers, the 6 CS 17P features heat-sealed inner components and an outer snap-fit shell for enhanced protection. Its vented design includes integral flame arrestor caps, providing safety and durability under heavy-duty usage. Equipped with molded handles and flag terminals with stainless steel hardware, this battery supports easy installation and maintenance.
Key Features
-
Robust 733Ah Capacity: Provides long-lasting energy storage at 6 volts for diverse applications.
-
Durable Dual-Container Construction: Polypropylene inner and HDPE outer cases ensure structural integrity and corrosion resistance.
-
Extended Reserve Capacity: Offers 1363 minutes at 25A and 454 minutes at 75A for reliable, sustained power delivery.
-
Wide Temperature Performance: Maintains 75% capacity at 0°C and 50% at -15°C, suited for various climates.
-
Low Self-Discharge: 5–10% monthly loss at 25°C preserves stored energy for extended periods.
-
Serviceable Flag Terminals: Includes stainless steel screws, nuts, and washers for secure connections.
-
Safety Venting: Flame arrestor vent caps enhance operational safety and battery longevity.
Specifications
| Weight | 100 kg | 220.5 lbs | |
|---|---|---|---|
| Length | 559 mm | 22" | |
| Width | 210 mm | 8.25" | |
| Height Incl. Term. | 464 mm | 18.25" | |
| Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. | |||
| Electrolyte Reserve | 95 mm | 3.75" | |
|---|---|---|---|
| Container (Inner) | Polypropylene | ||
| Cover (Inner) | Polypropylene - heat sealed to inner container | ||
| Container (Outer) | High Density Polyethylene | ||
| Cover (Outer) | High Density Polyethylene snap fit to outer container | ||
| Handles | Molded | ||
| Series | FLA SERIES 5000 | Warranty | See Warranty Terms |
|---|---|---|---|
| Volts | 6 | Design | SPEC |
| Cells | 3 | Plates/Cell | 17 |
| Terminal Type | Flag | ||
| Included Hardware | S/S Hex Cap Screw, Nut, Lock & Flat Washer | ||
| Size & Thread | 5/16"-18 | ||
Charge | Discharge
| Charge Voltage Range | 2.45-2.5 V/cell @ 25°C (77°F) |
|---|---|
| Float Voltage Range | 2.25 V/cell @ 25°C (77°F) |
| Self-Discharge Rate | 5%-10% per month at 25°C (77°F) |
Capacity
| Cold Crank Amps (CCA) 0°F / -18°C | 1393 |
|---|---|
| Marine Crank Amps (MCA) 32°F / 0°C | 1742 |
| Reserve Capacity (RC @ 25A) | 1363 Minutes |
| Reserve Capacity (RC @ 75A) | 454 Minutes |
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 105% | 100% | 75% | 50% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 733 AH | 7.33 A |
| @ 72 Hour Rate | 693 AH | 9.62 A |
| @ 50 Hour Rate | 656 AH | 13.12 A |
| @ 20 Hour Rate | 568 AH | 28.39 A |
| @ 15 Hour Rate | 528 AH | 35.21 A |
| @ 10 Hour Rate | 505 AH | 50.54 A |
| @ 8 Hour Rate | 488 AH | 61.04 A |
| @ 5 Hour Rate | 454 AH | 90.85 A |
| @ 1 Hour Rate | 256 AH | 255.53 A |
- Plastics are UL94 HB (UL94-V2 available)
- Plastics are impact copolymer rated to ASTM D256, D5420
- Vented design with integral flame arrestor vent caps
