Renogy 800W 12V General Off-Grid Solar Kit

by Renogy
SKU RKIT800PM-R60D4-LIH13-P3
Original price $3,849.99 - Original price $4,839.99
Original price
$3,849.99
$3,849.99 - $4,839.99
Current price $3,849.99

In Stock & Ready to Ship

All orders are shipped within 1-2 business days. Product ETA 7-14 business days.

The Renogy 800W Solar Kit - general off grid series offers you varies of options to help you get the most suitable mobile electricity solution for your 3.5-4kWh daily power need. (Based on 5 hours of direct sunlight conditions).

These kits can build a reliable and environmentally friendly power supply, perfect for a yard, barn, RV, boat, or camper. It can also be installed in a ground mount system next to off-grid campsites, as a power supply for outdoor appliances and emergencies, or as a stand-alone power system for water pumps, greenhouses, or other remote structures and machinery.

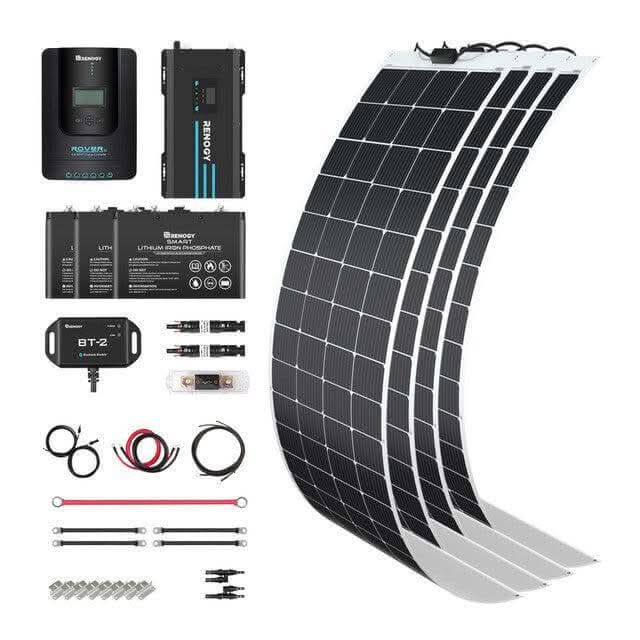

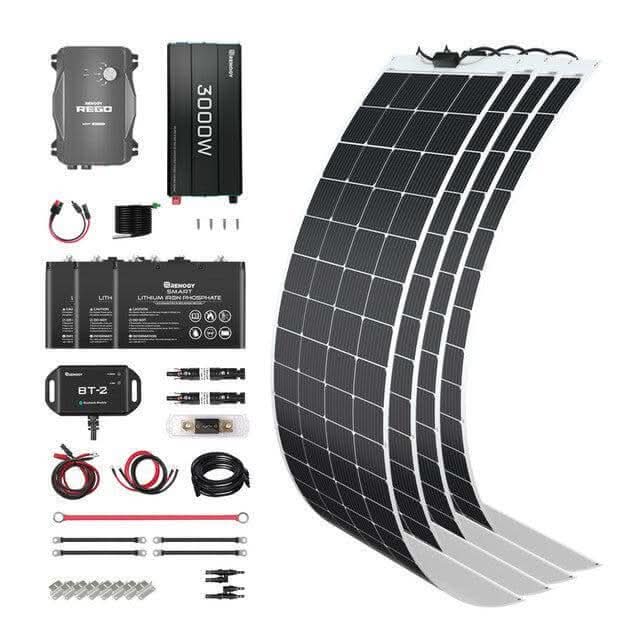

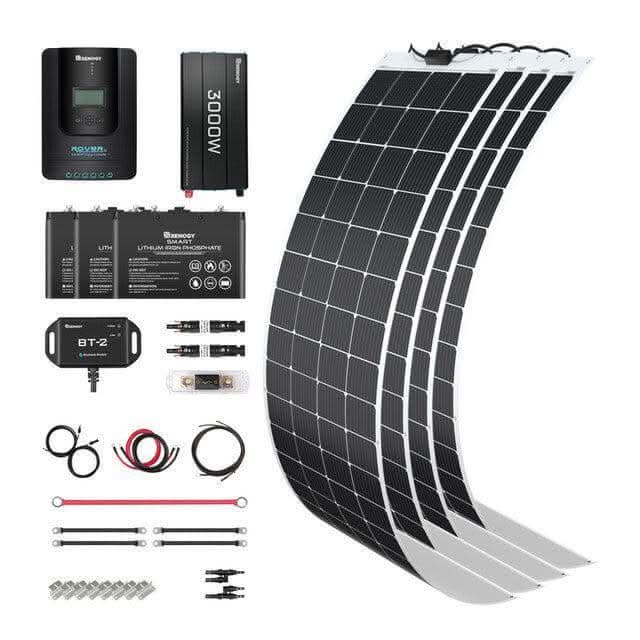

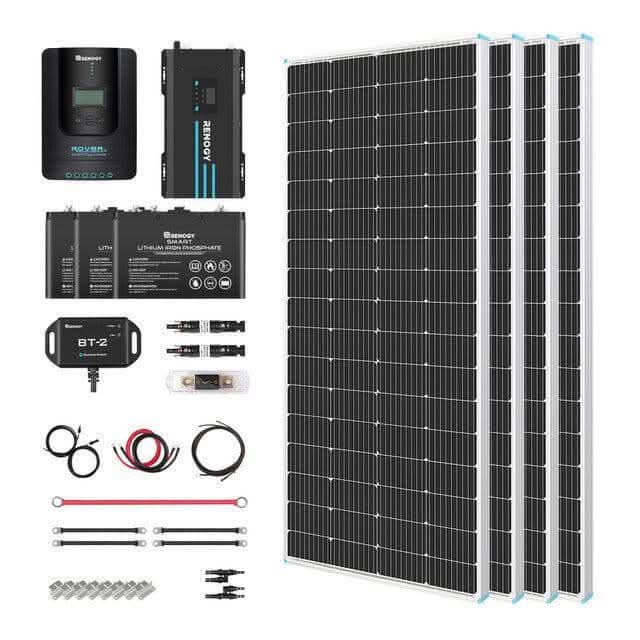

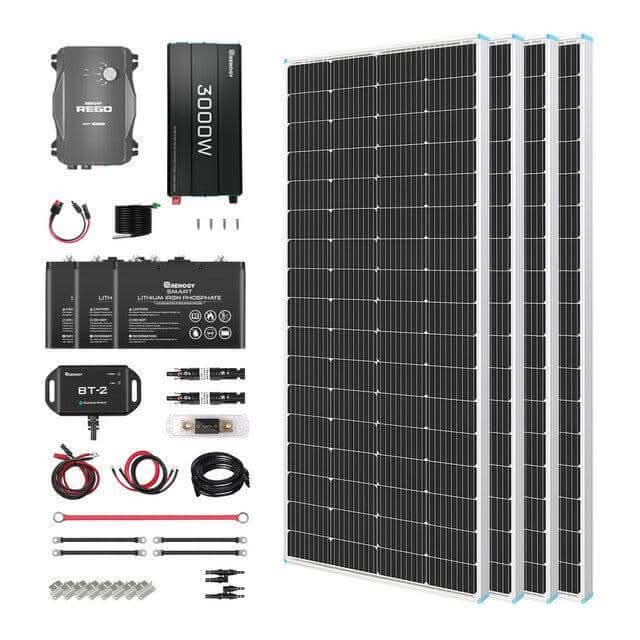

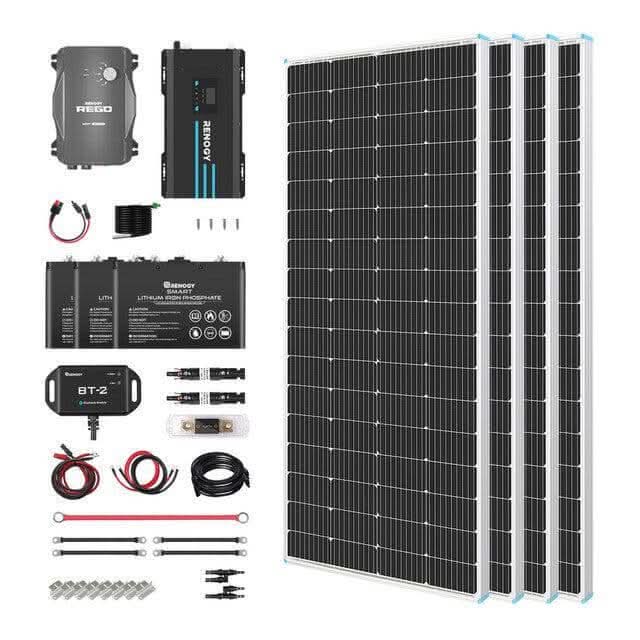

The Kits come with 4pcs of 200W classic rigid (or ultra flexible) solar panels, 1pcs of 60A MPPT charge controller from the classic Rover series or the innovative Rego series, no battery or 3pcs of 100Ah smart lithium battery with self heating feature (or the economical lithium battery with built-in Bluetooth), no inverter or 1pcs of 3000W pure sine wave inverter (or inverter charger), and all necessary accessories including cables, connectors, mounts and monitoring to connect the main components you have chosen.



Specifications

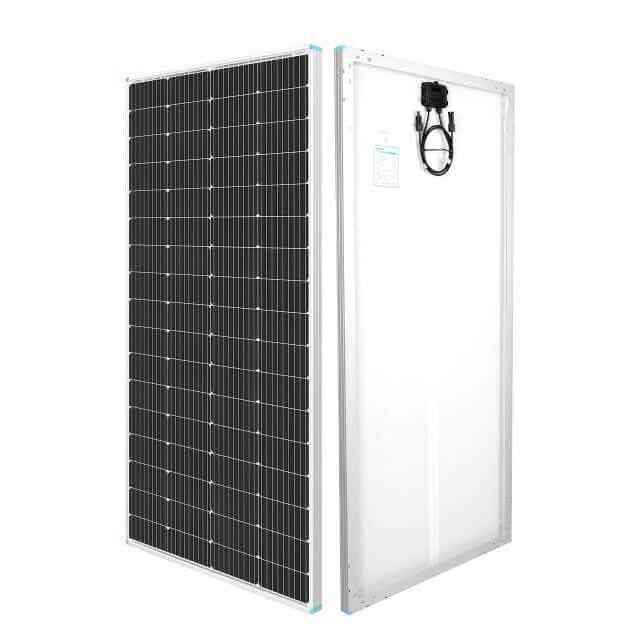

200W 12V RIGID SOLAR PANEL

Max Power at STC: 200W

Open Circuit Voltage: 23V

Short Circuit Current: 11.05A

Optimum Operating Voltage: 19.2 V

Optimum Operating Current: 10.42 A

Operating Temperature: -40°F~194°F / -40℃~90℃

Maximum System Voltage: 600 VDC UL

Maximum Series Fuse Rating: 20A

Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm

Weight: 26.46 lb (12 kg)

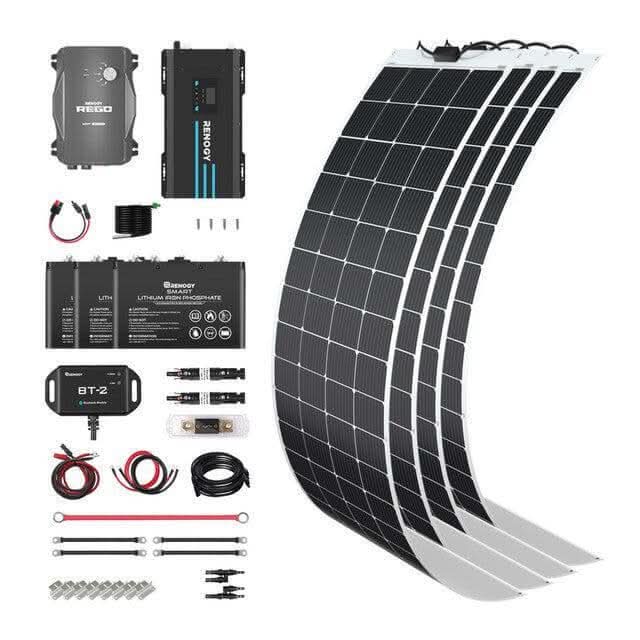

200W 12V FLEXIBLE SOLAR PANEL

Maximum Power at STC: 200W

Open-Circuit Voltage (Voc): 23.9V

Short Circuit Current: 10.74A

Optimum Operating Current (Imp): 10.02A

Maximum System Voltage: 600V DC

Maximum Series Fuse Rating: 15A

Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)

Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)

Weight: 4.9 kg / 10.8 lbs

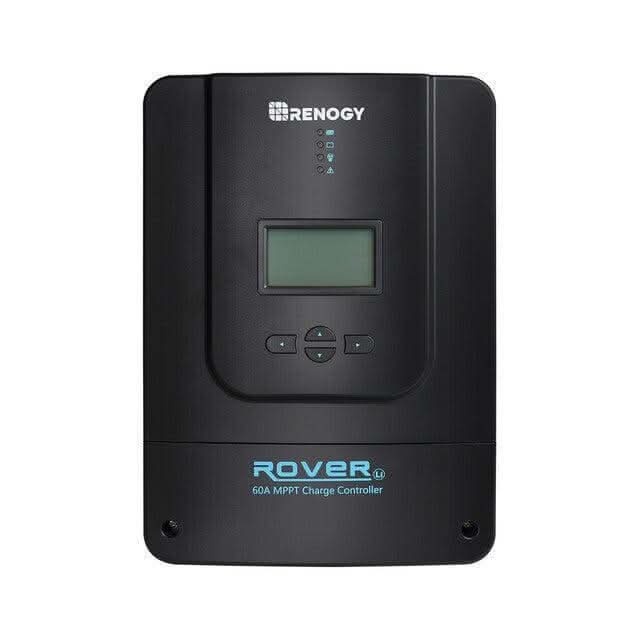

ROVER 60A MPPT W/ LCD & BT2 MODULE

Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)

Rated Charge Current: 60A

Rated Load Current: 20A

Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)

Self-Consumption: 0.7W-1.2W

Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C )

Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)

Weight: 7.9lbs

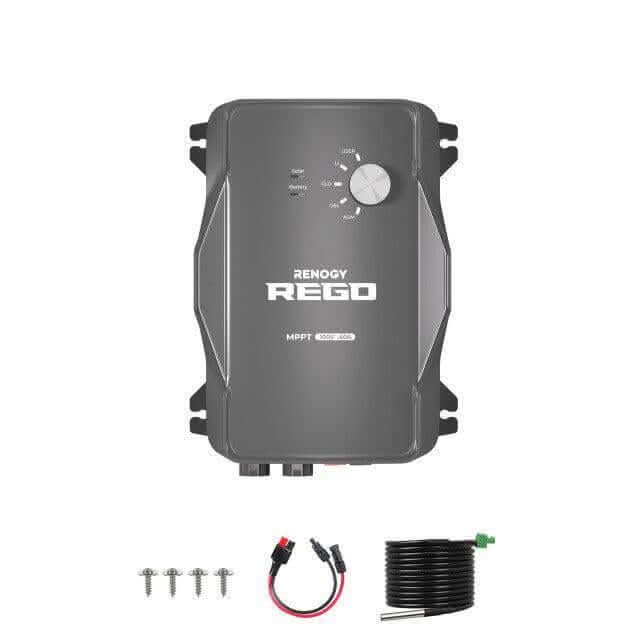

REGO 60A MPPT BUILT-IN BLUETOOTH

Nominal System Voltage: 12 V

Rated Charge Current: 60A

Max. PV Input Power: 800W

MPPT Voltage Range: 15 - 100 VDC /12V

Solar Input Voltage Range (VOC): 100 V

Max Input Current (short-circuit, Isc): 50A

Power Limiting Protection: Up to 800W/12V

Operating Temperature Range: -20 ℃ - 60℃

Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm

Weight: 5.07 lbs/ 2.30kg

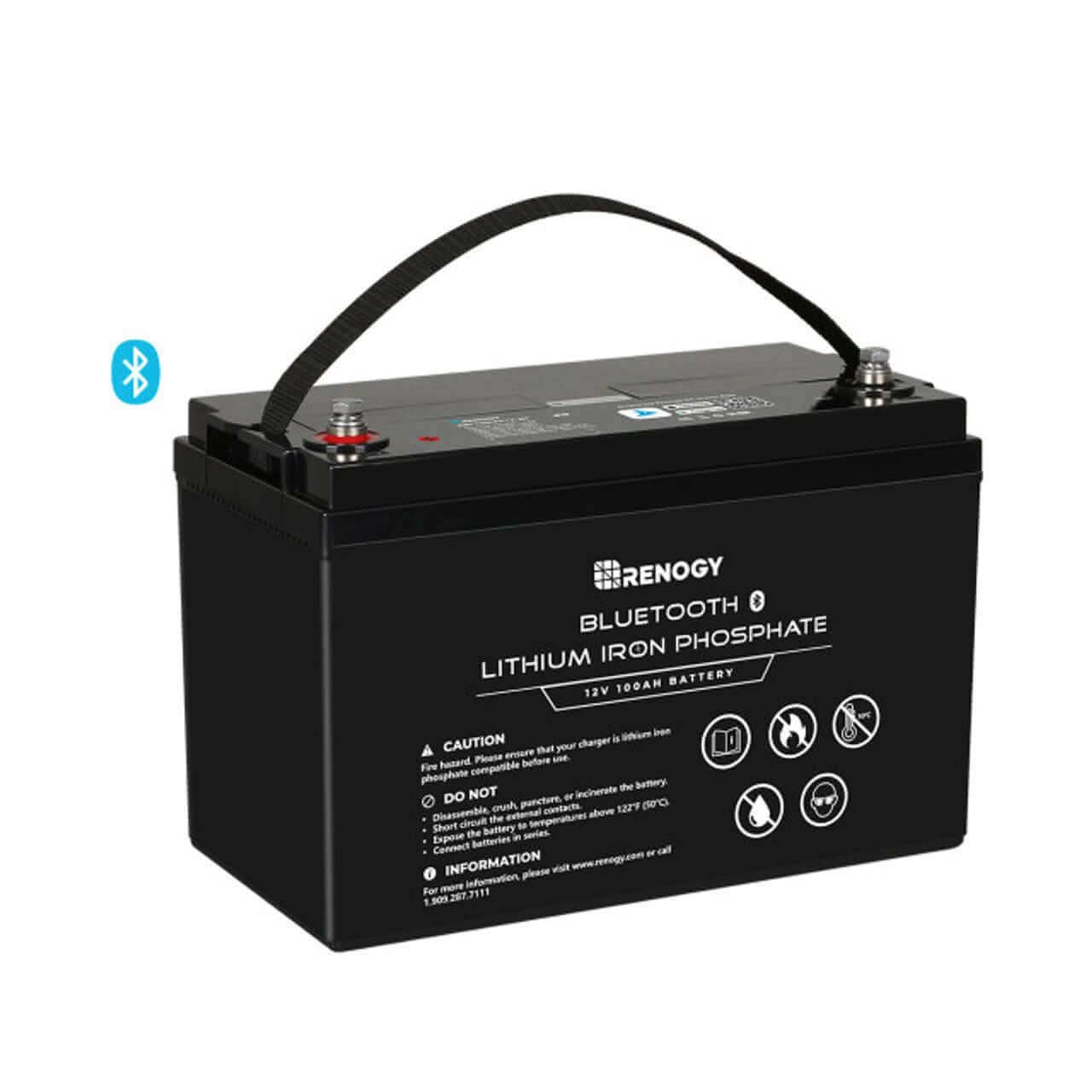

12V 100AH LIFEPO4 BATTERY W/ BULIT-IN BLUETOOTH

Battery Type: Lithium Iron Phosphate

Rated Capacity: 100 Ah

Nominal Voltage: 12.8 V

Voltage Range: 10~14.8 V

Cycle Life(0.5C,25℃): 80%DOD 2000 Cycles

Connection Method: Parallel(Up to 8)

Protection Rate: IP65

Charge Voltage: 14.4V

Maximum Continuous Charging Current: 50 A

Maximum Continuous Discharging Current: 100 A

Standard Operation Temperature: 25℃±5℃

Charge Temperature: 32~131°F/ 0~55°C

Discharge Temperature: -4~140°F/ -20~60°C

Communication Port: Modbus

Built-in Bluetooth: Yes

Dimensions: 12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm

Weight: 28.7 lbs. / 13.0 kg

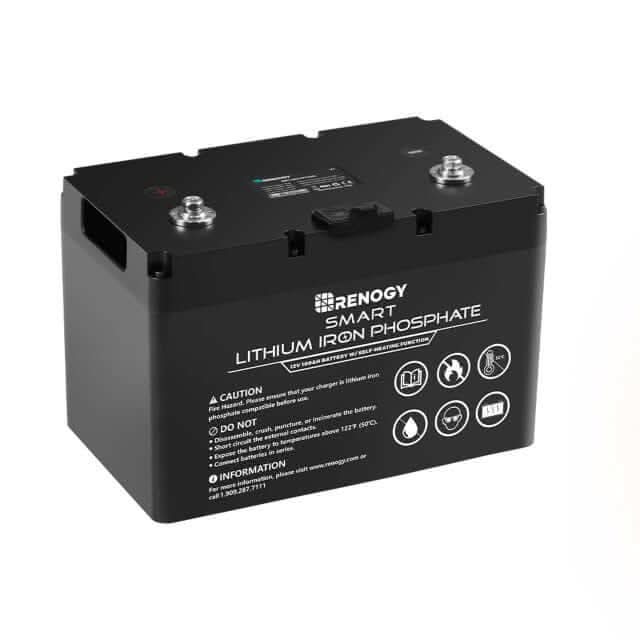

12V 100AH SELF-HEATING LIFEPO4 BATTERY W/ BT2 MODULE

Battery Type: Lithium Iron Phosphate

Rated Capacity: 100AH

Nominal Voltage: 12.8 V

Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles

Connection Method: Parallel

Protection Rate: IP54

Charge Voltage: 14.4V

Maximum Continuous Charging Current: 50 A

Maximum Continuous Discharging Current: 100 A

Automatically Self-heating Function: Temperature < 41℉(5℃)

Standard Operation Temperature: 25℃±5℃

Storage Temperature: -13~149℉ / -25~65℃

Communication Port: RJ45 (RS485 Protocol)

Built-in Bluetooth: No

Dimensions: 11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm

Weight: 26 lbs. / 11.8 kg


3000W 12V PURE SINE WAVE INVERTER

Continuous Output Power: 3000W

Peak Power Rating: 6000W

Output Voltage: 120V

Output Frequency: 60 Hz ± 0.1%

AC Output Sockets: 3

AC Terminal Block: 1

USB Power Port: 5V/2.1A

Power Output Control: AC On/Off Switch, and Remote Control

Output Waveform: Pure Sine Wave

Nominal Efficiency: > 90%

Operating Temperature Range: -4°F - 104°F

Cooling Fan: Thermally controlled

Dimensions: 18.9 x 9.0 x 4.0 in

Weight: 12.5 lb

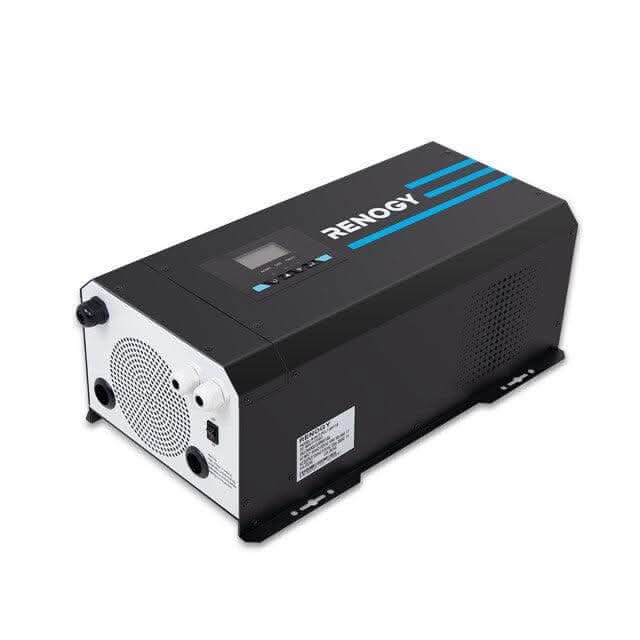

3000W 12V PURE SINE WAVE INVERTER CHARGER

Continuous Power: 3000W

AC Output Voltage Range: 100~120VAC configurable, 5V interval

DC Input Voltage Range: 10~16 VDC

Nominal Efficiency: > 90% Peak

Output Waveform: Pure Sine Wave

Output Frequency : 50/60 Hz

Input Voltage Range: 90-138 VAC

Input Wave Form: Sine Wave (Utility or Generator)

Operating Temperature: 0 ~ 40°C / 32 ~ 104°F

Storage Temperature: -30 ~ 70°C / -22 ~ 158°F

Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER

Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm

Weight: 63.5 lbs / 28.8 Kg

opc:


WARRANTY INFORMATION

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories: 1-year material and work
