Renogy 400W 12V General Off-Grid Solar Kit
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.

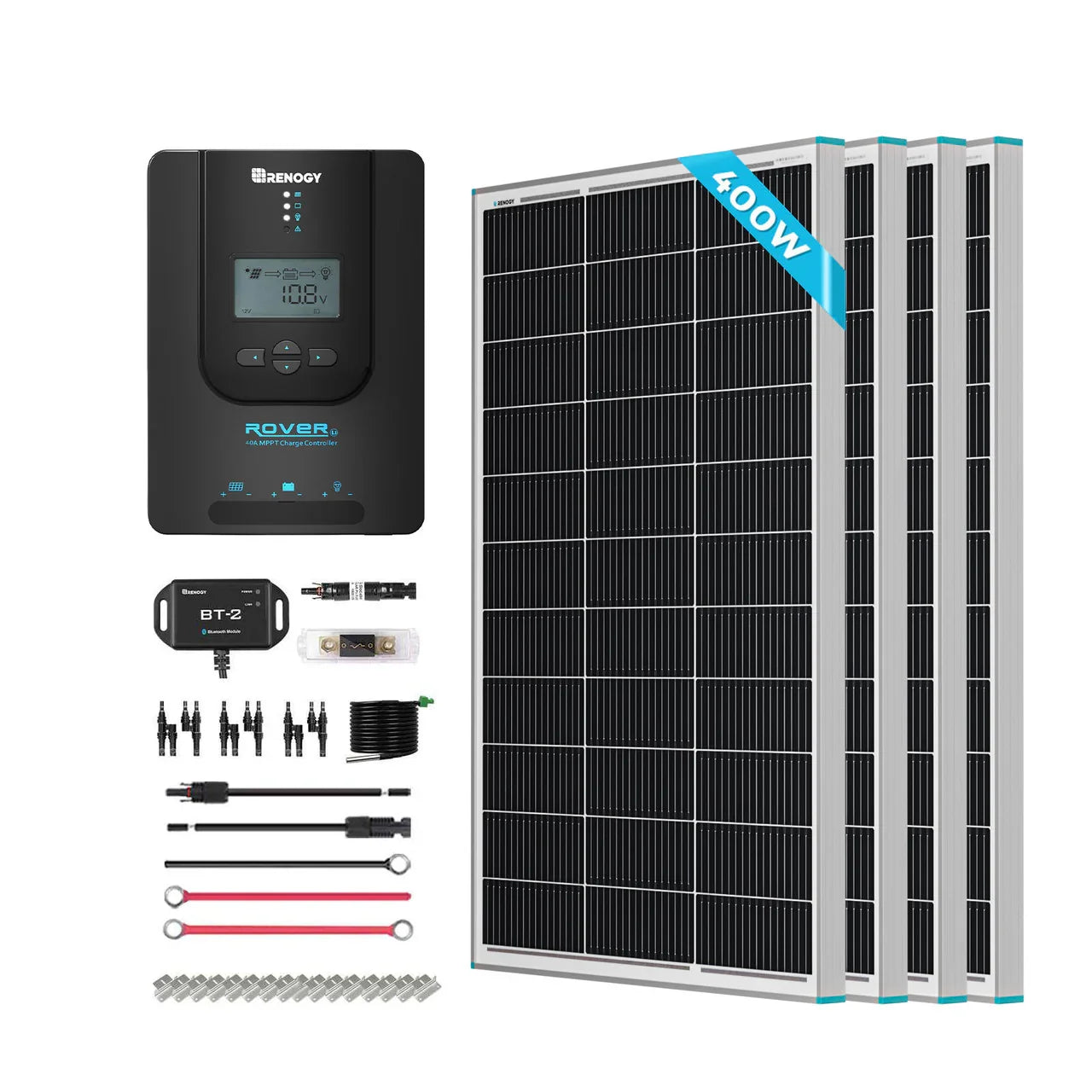

Introducing Renogy Custom Kit - Your All-In-One Solar Solution
At Renogy, we understand that your energy needs are unique, and that's why we've designed the Renogy Custom Kit with your convenience in mind. With a comprehensive range of options, you can effortlessly create a solar power system that seamlessly fits your lifestyle, whether it's for your home, RV, boat, or an off-grid cabin.
Gone are the days of searching for compatible components from different sources. Our custom kits are thoughtfully packaged and ready to go, ensuring a hassle-free setup process.
Package Contents:
Solar Panels:
- Choose from 4pcs of 100W or 2pcs of 200W classic rigid solar panels, or 2pcs of 200W ultra-flexible solar panels.
Charge Controller:
- Select from our high-quality options, including the classic Rover series with a 40A MPPT charge controller and an LCD & BT1 module, or the more economical Adventurer Li with a 30A PWM charge controller and LCD & BT1 module.
Battery:
- Decide between the powerful 12V 100Ah LiFePO4 battery with built-in Bluetooth for smart monitoring or the self-heating variant with BT2 module for extreme weather conditions.
Inverter:
- Opt for the 2000W 12V pure sine wave inverter to efficiently convert your solar energy into usable power or choose the 2000W 12V pure sine wave inverter charger for added functionality.
Accessories:
- Each kit comes complete with all necessary accessories, including cables, connectors, mounts, and monitoring tools to connect the main components seamlessly.
Designed for Optimal Performance:
- Our kits are based on an average of peak sun hours around 5-6, ensuring reliable power generation throughout the day.
Package Options:
- Basic Accessory Set:
- Solar Panel Mounting Z Brackets (Set of 4)
- Solar Y Branch Connectors MMF+FFM Pair
- Solar Panel to Charge Controller Adaptor Kit
- Battery to Charge Controller Tray Cables
- Premium Accessory Set:
- Solar Panel Mounting Z Brackets (Set of 4)
- Solar Y Branch Connectors MMF+FFM Pair
- Solar Panel to Charge Controller Adaptor Kit
- Battery to Charge Controller Tray Cables
- BT-1 Bluetooth Module (New Version)
- Holders with Fuse
- 60A ANL Fuse Set with Fuse
- Terminals for 3/8 in Lugs
With Renogy Custom Kit, the power is in your hands. Design a solar system tailored to your needs, and embrace the freedom of sustainable energy wherever you go.
Specifications
Max Power at STC: 100W
Open Circuit Voltage: 24.3V
Short Circuit Current: 5.21A
Optimum Operating Voltage: 20.4V
Optimum Operating Current: 4.91A
Operating Temperature: -40°F to 176°F
Maximum System Voltage: 600V DC (UL)
Maximum Series Fuse Rating: 15A
Dimensions: 41.8 x 20.9 x1.38 in
Weight: 14.1lbs/6.4kg
Max Power at STC: 200W
Open Circuit Voltage: 23V
Short Circuit Current: 11.05A
Optimum Operating Voltage: 19.2 V
Optimum Operating Current: 10.42 A
Operating Temperature: -40°F~194°F / -40℃~90℃
Maximum System Voltage: 600 VDC UL
Maximum Series Fuse Rating: 20A
Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight: 26.46 lb (12 kg)
Maximum Power at STC: 200W
Open-Circuit Voltage (Voc): 23.9V
Short Circuit Current: 10.74A
Optimum Operating Current (Imp): 10.02A
Maximum System Voltage: 600V DC
Maximum Series Fuse Rating: 15A
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)
Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
Weight: 4.9 kg / 10.8 lbs
Nominal Voltage: 12/24V Auto-Detect
Rated Charge Current: 40A
Max. PV Input Power: 12V/520W, 24V/1040W
Max. PV Input Voltage: 95 VDC
Operating Temperature: -4°F to 185°F ('-20℃~85℃)
Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Weight: 4.58oz (130g )
Nominal System Voltage: 12 VDC
Rated Charge Current: 30A
Max. PV Input Power: 25 VDC
High Voltage Disconnect: 16V
Operating Temperature Range: -31°F - 176°F
Dimensions: 6.45 x 4.31 x 1.76 inches
Weight: 0.65 lbs
Nominal Voltage: 12 VDC/ 24 VDC
Rated Charge Current: 30A
Max. PV Input Voltage: 50 VDC
Max. PV Input Power: 12V(400W) / 24V(800W)
Storage Temperature: -31°F to 176°F
Dimensions: 6.56 x 4.50 x 1.90 inches
Weight: 0.6 lbs
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100 Ah
Nominal Voltage: 12.8 V
Voltage Range: 10~14.8 V
Cycle Life(0.5C,25℃): 80%DOD 2000 Cycles
Connection Method: Parallel(Up to 8)
Protection Rate: IP65
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
Maximum Continuous Discharging Current: 100 A
Standard Operation Temperature: 25℃±5℃
Charge Temperature: 32~131°F/ 0~55°C
Discharge Temperature: -4~140°F/ -20~60°C
Communication Port: Modbus
Built-in Bluetooth: Yes
Dimensions: 12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm
Weight: 28.7 lbs. / 13.0 kg
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100AH
Nominal Voltage: 12.8 V
Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles
Connection Method: Parallel
Protection Rate: IP54
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
Maximum Continuous Discharging Current: 100 A
Automatically Self-heating Function: Temperature < 41℉(5℃)
Standard Operation Temperature: 25℃±5℃
Storage Temperature: -13~149℉ / -25~65℃
Communication Port: RJ45 (RS485 Protocol)
Built-in Bluetooth: No
Dimensions: 11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm
Weight: 26 lbs. / 11.8 kg
Continuous Output Power: 2000W
Peak Power Rating: 4000W
Output Voltage: 1150V
Output Frequency: 60 Hz ± 0.1%
AC Output Sockets: 3
AC Terminal Block: 1
USB Power Port: 5V/2.1A
Power Output Control: AC On/Off Switch, and Remote Control
Output Waveform: Pure Sine Wave
Nominal Efficiency: > 90%
Operating Temperature Range: -4°F - 104°F
Cooling Fan: Thermally controlled
Dimensions: 17.8 x 8.6 x 4 in
Weight: 11.7 lbs
Continuous Power: 2000W
AC Output Voltage Range: 100~120VAC configurable, 5V interval
DC Input Voltage Range: 10~16 VDC
Nominal Efficiency: > 90% Peak
Output Waveform: Pure Sine Wave
Output Frequency : 50/60 Hz
Input Voltage Range: 90-138 VAC
Input Wave Form: Sine Wave (Utility or Generator)
Operating Temperature: 0 ~ 40°C / 32 ~ 104°F
Storage Temperature: -30 ~ 70°C / -22 ~ 158°F
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
Weight: 51.1 lbs / 23.2 Kg
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
