Morningstar Remote Temperature Sensor
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.

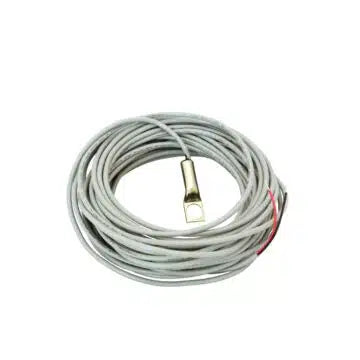

Morningstar’s Remote Temperature Sensor™ (RTS) provides improved battery charging in solar systems that experience temperature variations during the year. The RTS measures temperature at the battery and the controller uses this data for very accurate temperature compensation. Use of the RTS is recommended whenever the temperature at the battery will be more than 5°C (9°F) different than the temperature at the controller. The TriStar has no on-board temperature compensation; therefore the use of the RTS is required for temperature compensated charging. Other Morningstar controllers will default to an on-board temperature sensor if a RTS is not connected. The RTS is compatible with the following Morningstar controllers:
- TriStar, TriStar MPPT, TriStar MPPT 600V
- ProStar and Prostar MPPT
- Sunsaver MPPT
- EcoBoost MPPT
- SunKeeper
- SunSaver Duo
- EcoPulse
*Remote Temperature Sensors included with all TriStar MPPT units.
Specifications and Certifications by Model
| Model | RTS |
|---|---|
| Temperature Accuracy | +/- 1.5C |
| Warranty | 5 Years |
| CE and RoHS | Yes |
| Cable rated UL CMR | Yes |
| ETL recognized component for use with TriStar and TriStar MPPT controllers | Yes |
| Manufactured in a Certified ISO 9001 Facility | Yes |
Key Features and Benefits
- Recommended for solar systems that experience temperature variations during the year or whenever the temperature at the battery will be more than 5 °C (9 °F) different than the temperature at the controller
- Improves battery charging by using temperature at the battery for very accurate temperature compensation
