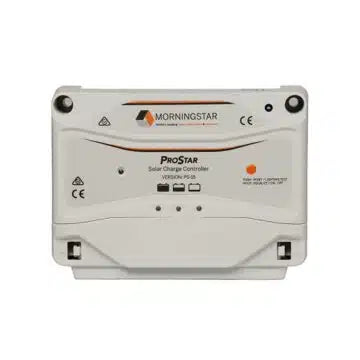

Morningstar ProStar™ PWM Solar Charge Controllers - Gen 3*

The ProStar solar charge controller has been the leading mid-range pulse width modulation (PWM) controller since 1995. With over 350,000 units installed in the harshest environments in over 100 countries, ProStar sets the standards in performance and reliability for the rest of the solar industry.

The Generation 3 ProStar shares the outstanding build quality and familiar form factor of its predecessors and adds data and lighting control capabilities, a graphical interface, and advanced protection features that meet the needs of today’s most demanding off-grid solar applications. ProStar provides both “the legend and the latest” in a single new product.

“…you get what you pay for, and this one is worth every penny…count on Morningstar.”

Specifications and Certifications by Model

Key Features and Benefits

• High Reliability
  Latest electronic and environmental protections, quality control, and design considerations comply with IEC 62109 and promote longevity in the harshest environments
• High Temperature Operation
  Full nameplate current rating, both solar and load up to 60°C continuous
• Auto-Battery-Select
  12V and 24V systems
• Data Logging
  Up to 256 days of solar charge and load consumption data
• Self-diagnostics
  Continuous monitoring and reporting of any errors or system faults through its status LED’s, optional display and communication port

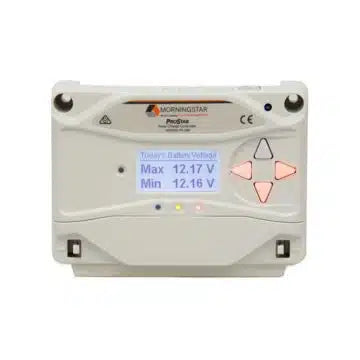

• Meter
  High resolution LCD, multi-lingual backlit graphical display of system voltage, current, temperature, lighting settings, etc.
• Custom Programming
  Dip switches, meter interface, or connection with a computer can be used to adjust charging, load communications, and lighting control
• Low Noise Design
  Meets US Federal Communications Commission Class B specifications
• Automatic Solar-Based Lighting Control
  Field adjustable, multi-event load control enables powerful options for solar lighting systems
• MODBUS Communications
  Open standard MODBUS communications protocol allows for control and remote data access
• SNMP (Simple Network Management Protocol) Monitoring
  Provides more detailed monitoring of all system data with existing IT management and architecture when connected to EMC-1 accessory

Videos

ProStar (Gen3) Controller | 3 Minute Video

This short video highlights the ProStar (Gen3) PWM solar charge controller. This device has been upgraded, while maintaining the same quality and form factor of previous models that have been installed in over 100 countries in the world’s harshest environments since 1995. View this video to learn about the new features and capabilities of this product including enhanced custom programming, data logging, communications, and lighting control.

Morningstar "Charging Experts" Featuring ProStar | 6 minute video

This 6 minute video highlights the ProStar solar charge controller’s HazLoc ratings and circuit board that differentiates it from other brands. In addition to the capacitors, inductors, processors, surge protectors, and other over-spec’d internal components, the quality of the controller’s heat sink and outer casing is also addressed. The video concludes with mention of features and capabilities related to communications, datalogging, lithium battery charging, and high quality and reliability.

Application

• Lighting
• Residential

• Rural Electrification

• RV-Caravan and Marine

• Security and Surveillance

• Telecom
