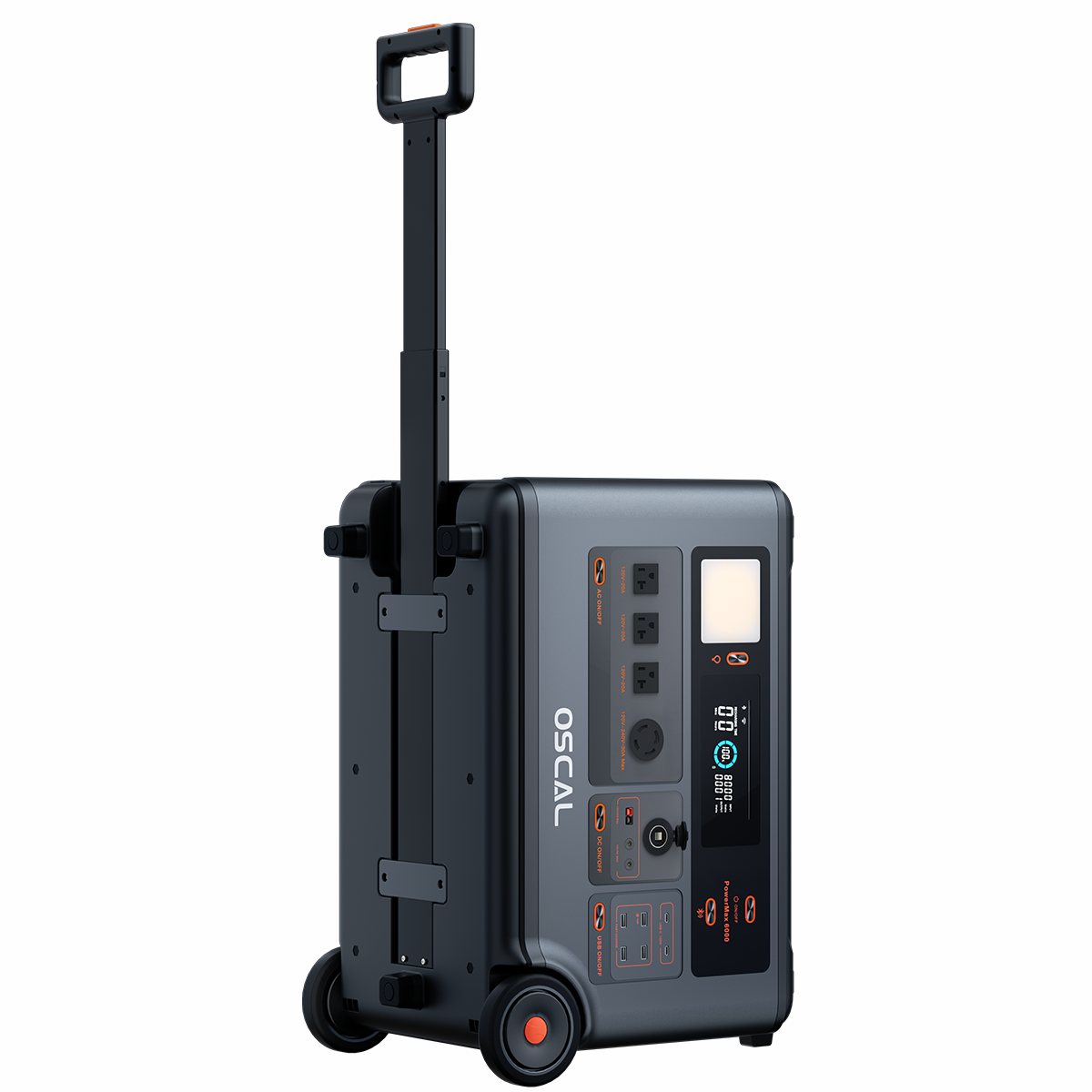

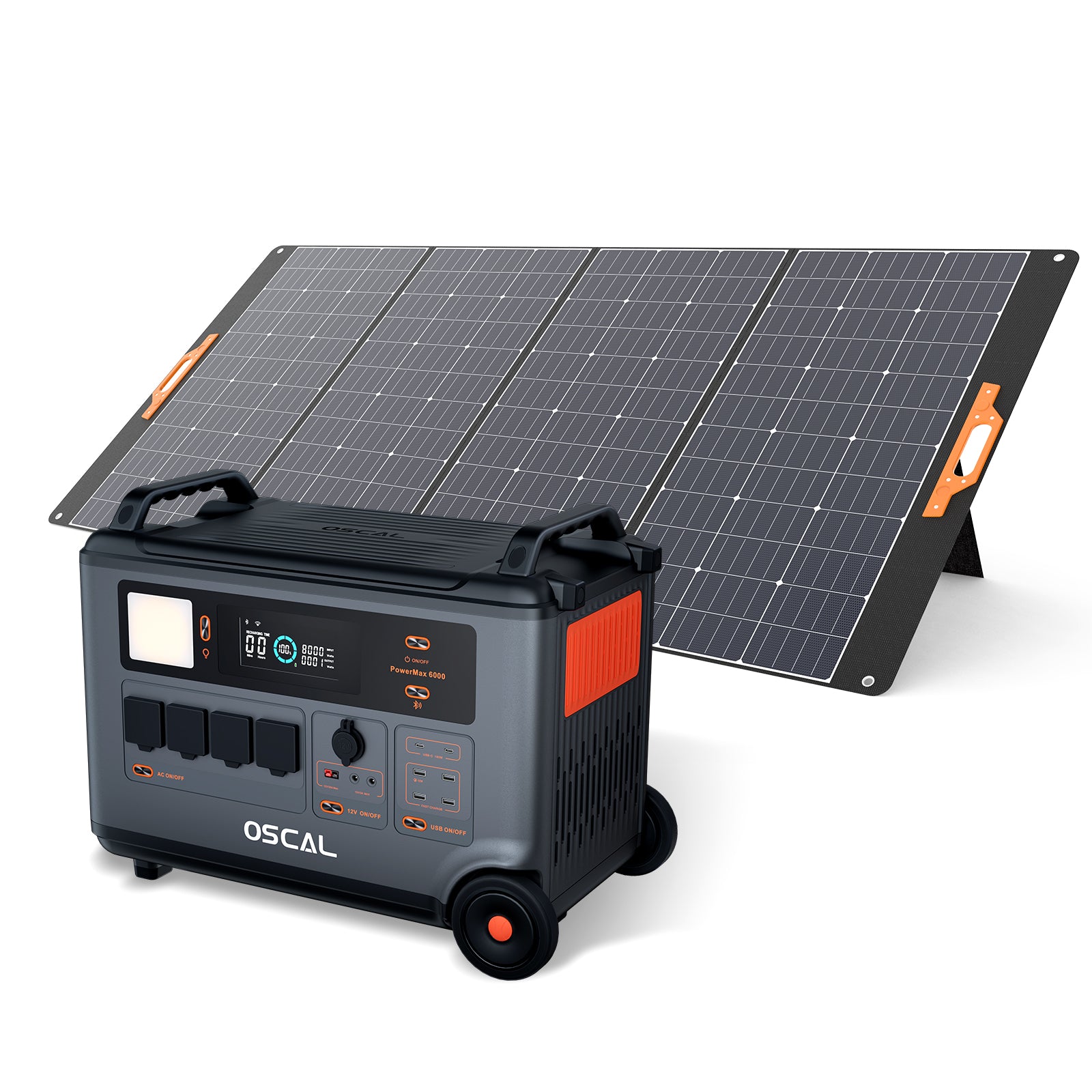

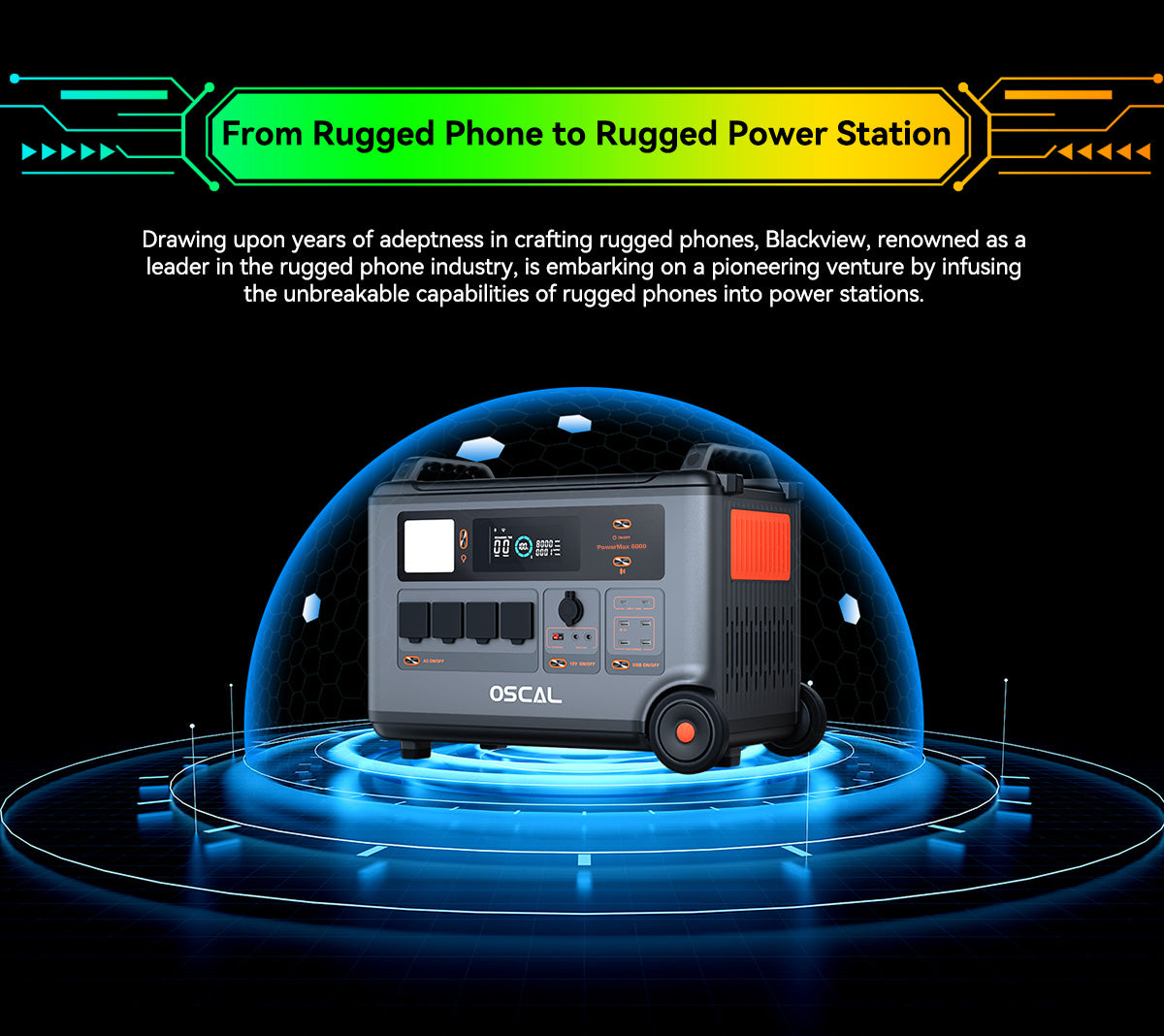

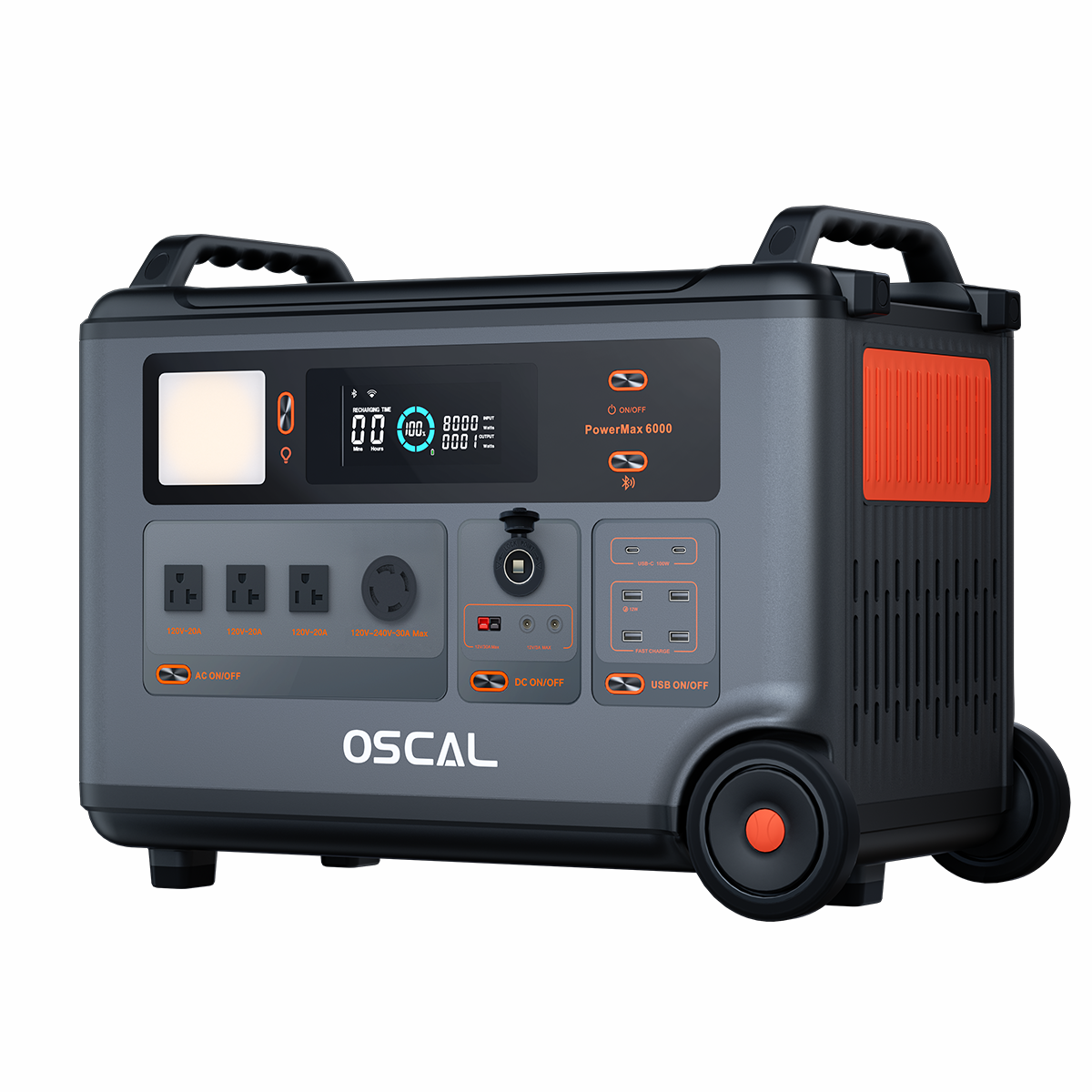

Oscal PowerMax 6000 Portable Power Station

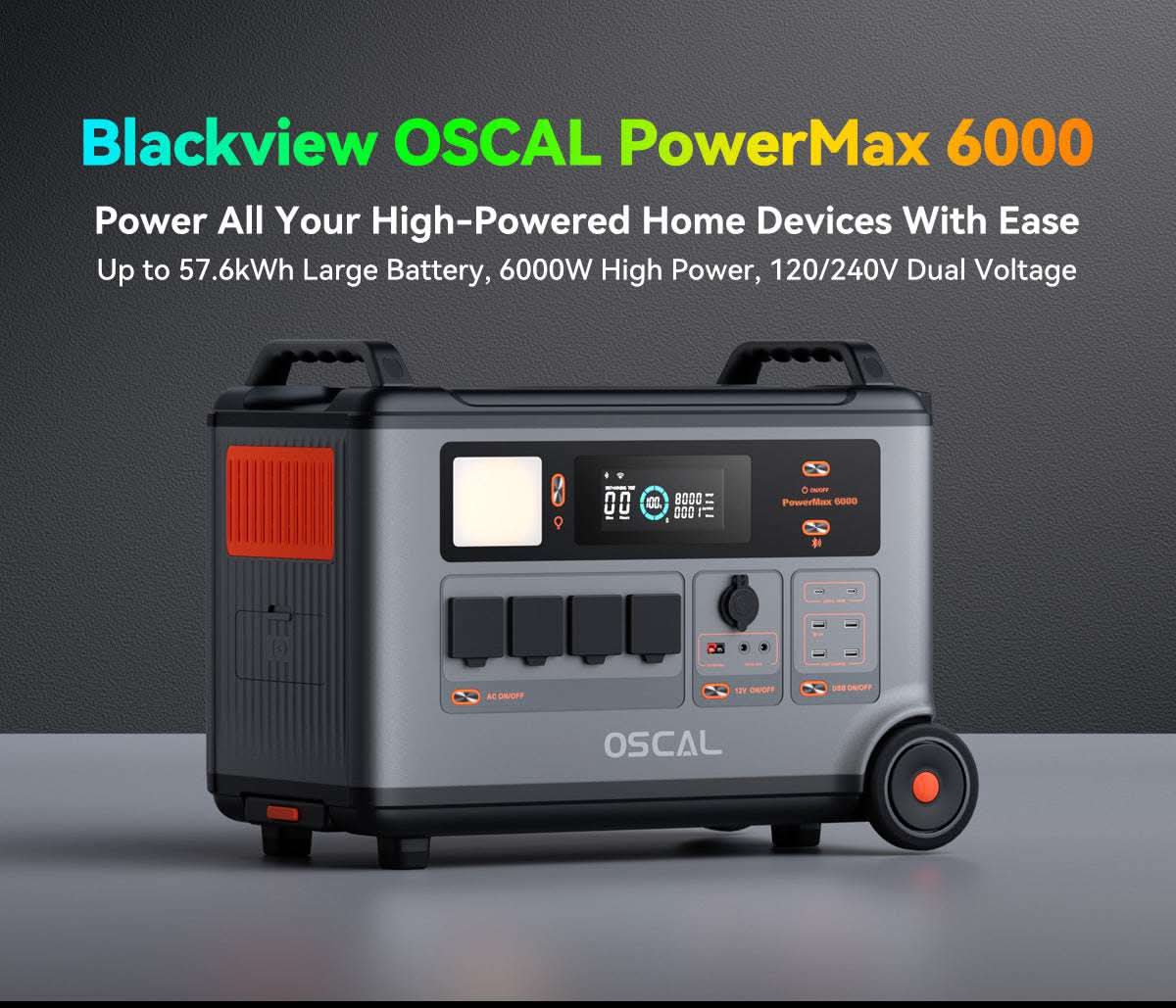

The Oscal PowerMax 6000 is a high-capacity portable power station with a 3600Wh capacity and 6000W output, powering up to 99% of household appliances. Its 120/240V dual-voltage capability supports a wide range of devices, from electronics to heavy-duty tools.

Features

1. 3600Wh Capacity, 6000W, 120/240V Output

2. Expandable Capacity

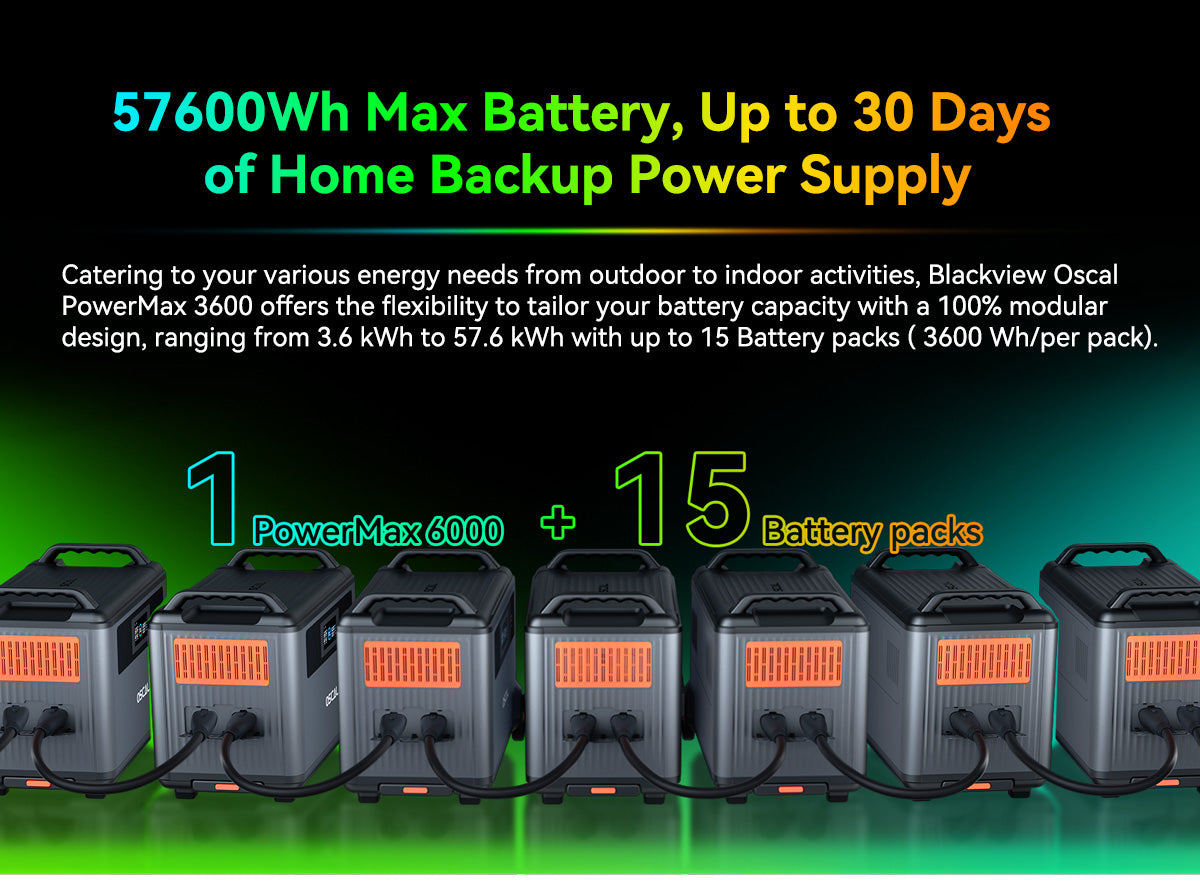

Starts with 3600Wh and can be expanded up to 57,600Wh by connecting up to 15× BP3600 batteries, providing long-lasting power for various applications.

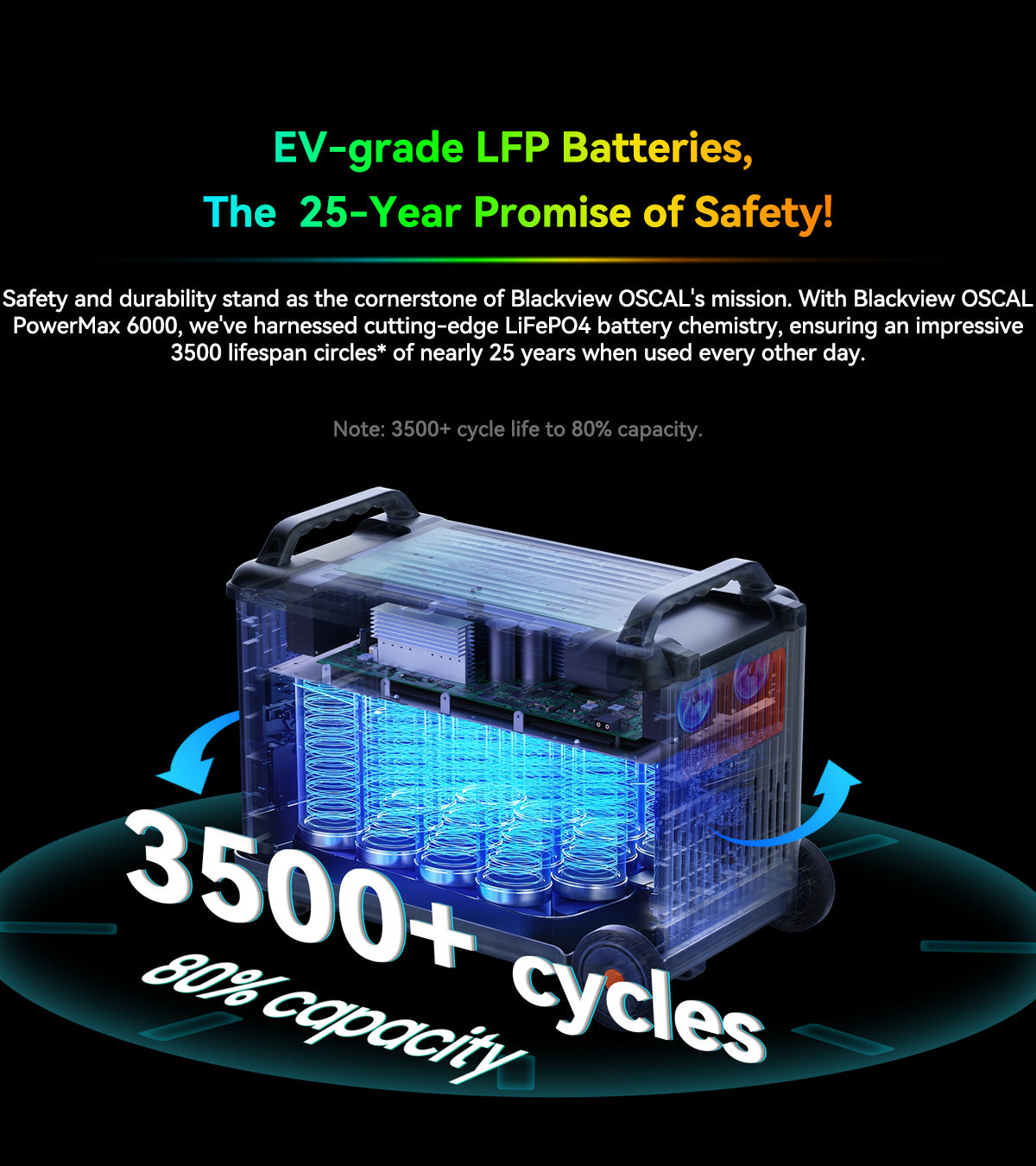

3. LiFePO₄ (Lithium Iron Phosphate) cells, ensuring enhanced safety, durability, and a lifespan of up to 3500 cycles at 80% depth of discharge (DOD).

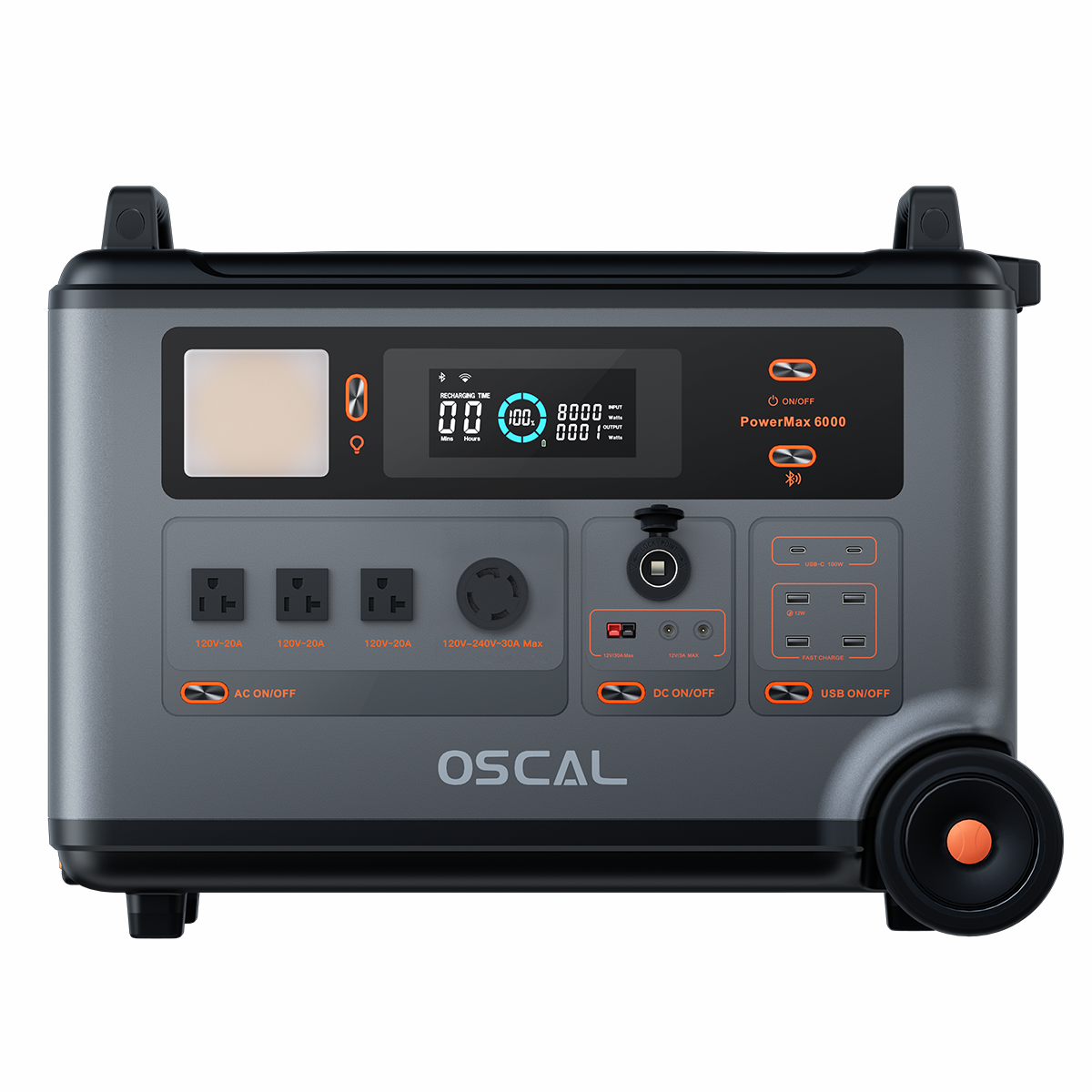

4. 14 Versatile Output Ports

Includes a variety of outputs, such as 4*AC outlets(1*240V, 3*120V), Anderson Connector, DC5521 ports*2, USB-A*4, USB-C*2, Car cigarette lighter, and more, ensuring seamless power anywhere.

5.Rapid Solar Charging

with 2,400W solar input, allowing for a charge of 0 to 80% in just 1.5 hours by sunlight.

6. 5-8ms fast switch time UPS Function

7. 5 LED Light Modes

Stay safe with 5 lighting modes: Dim, Bright, Breathing, Flashing, and SOS, featuring a 5W ultra-bright LED for emergencies or outdoor use.

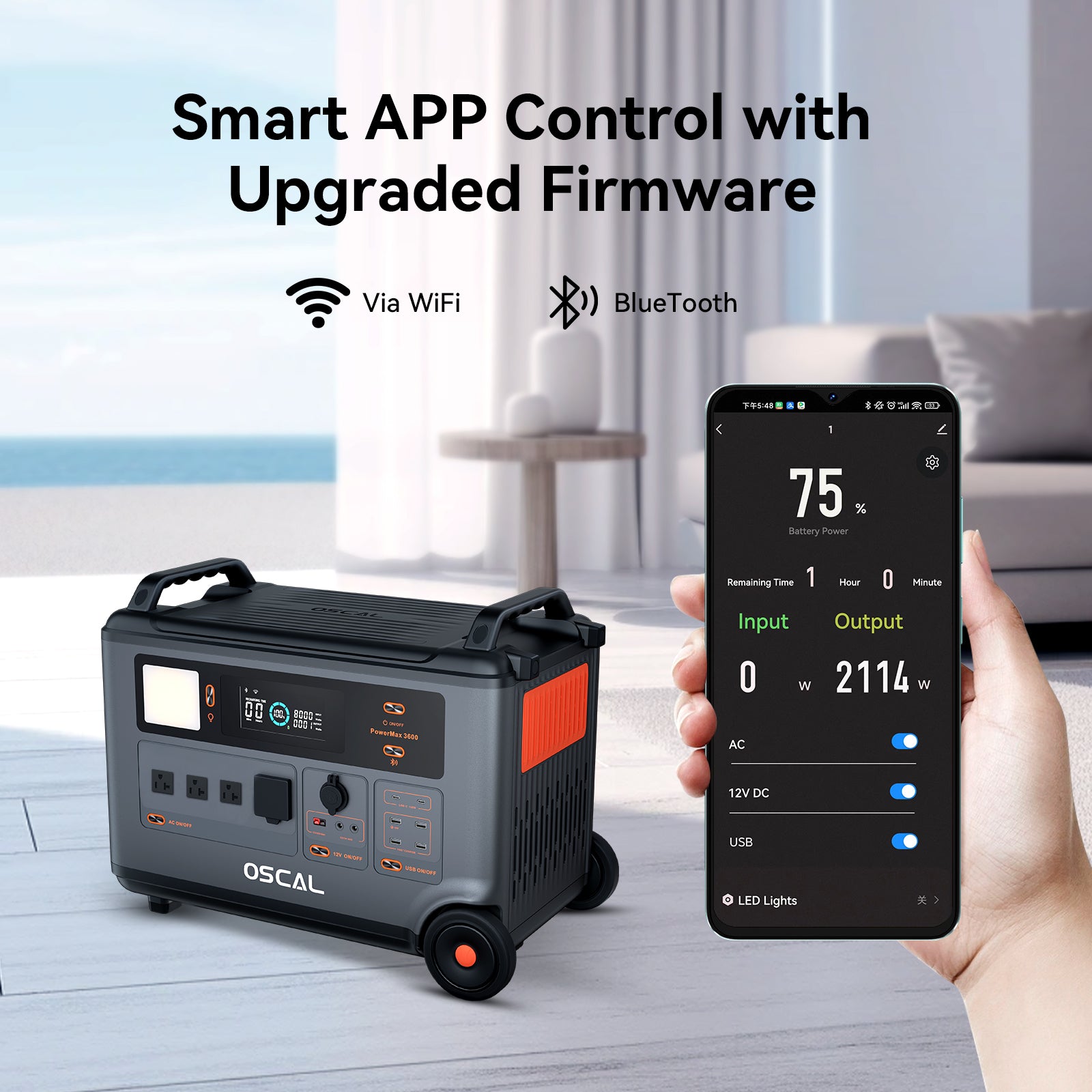

8. Smart App Control via Bluetooth & WiFi

—adjust power, check charging times, and manage settings via Bluetooth or WiFi.

Specs

GENERAL	Battery Capacity	3600Wh
	Rated Power	6000W (9000W Surge)
	Voltage	120V/240V Split Phase Voltage
	Battery Type	LFP (LiFePO4 Battery)
	Battery Life Cycles	3500+ Cycles to 80%
	Expandable Capacity	3.6kWh-57.6kWh (PowerMax 6000 + Up to 15x BP3600)
	UPS Switching Time	5-8 ms Fast Switch
	App Control	Yes (via WiFi & Bluetooth)

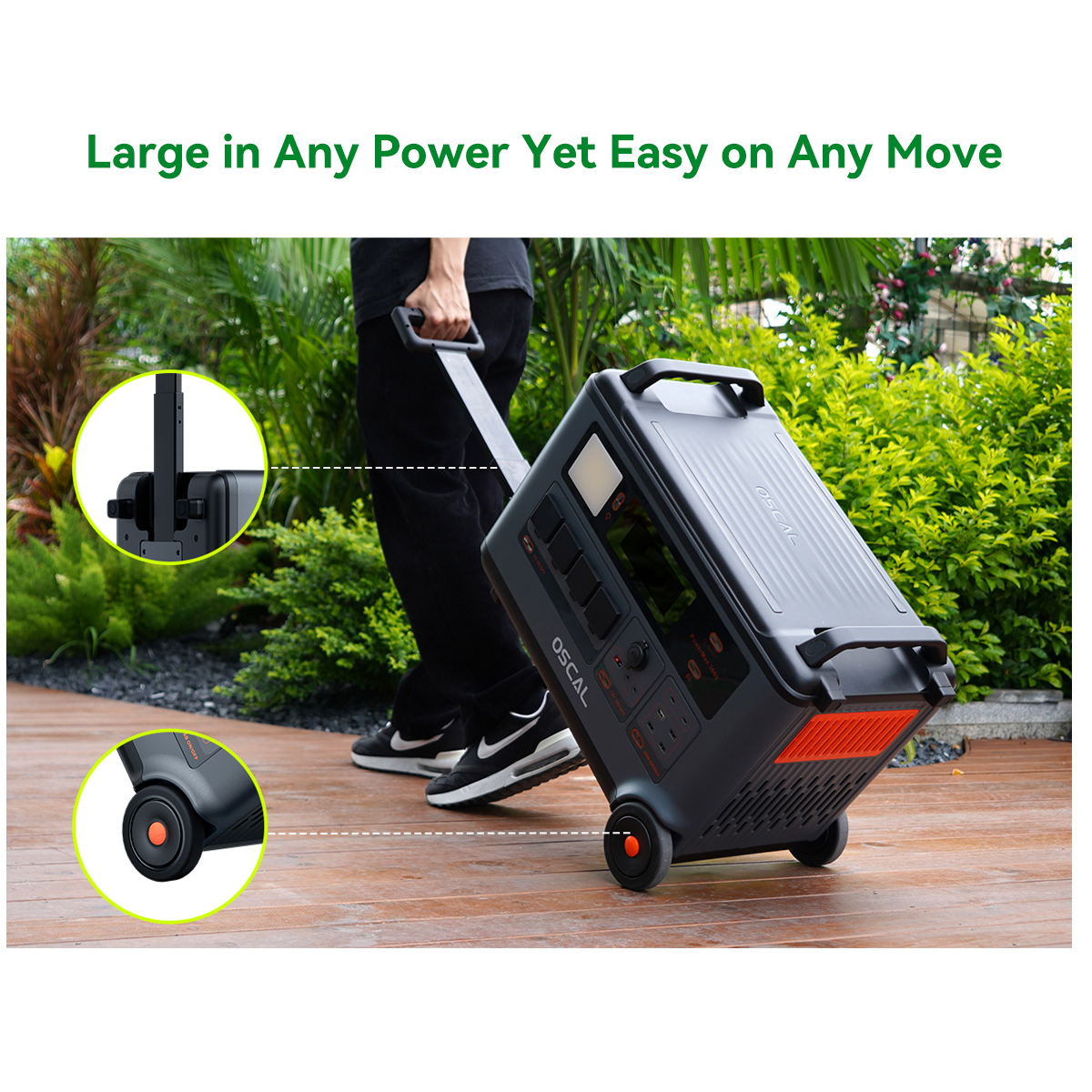

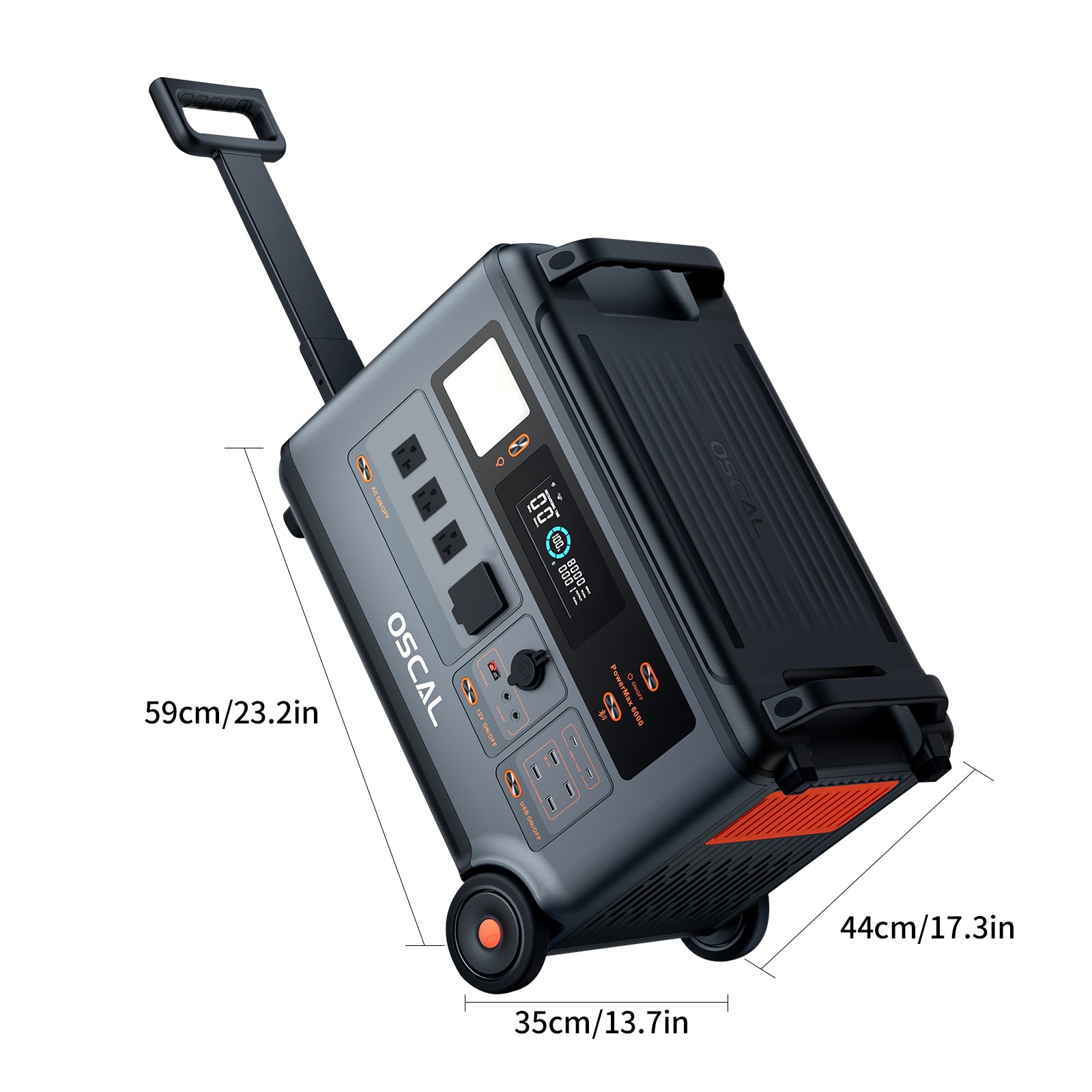

	Dimensions	23.23" x 13.78" x 17.36"
	Weight	101.41 lbs (46 kg)
	Warranty	5 Years
Output Ports	AC x 4	1x 240V, 1 x 30A
		3x 120V, 3 x 20A
		Total 6000W
	Inverter Type	Pure Sine Wave
	USB-A x 4	3 x 18W
		1x 12W
	USB-C x2	2 x 100W
	DC5521 Ports x2	2x 36W, 12V, 3A
	Car Cigarette Lighter Port x 1	1x 120W, 12V, 10A
	Anderson Connector x1	1x 378W, 12.6V, 30A
Input Ports	AC Adapter Input	Fast Charging: 120V~1800W, 240V~2200W Recharging Time: 1.96Hrs
		Slow Charging: 1200W
	AC Input Voltage	120V/240V, 15A Max
	Solar Input	2400W Max,  12-150V, 25A Max  Recharging Time: 1.5Hrs
	Car Input	240W Max Recharging Time: 15Hrs
Package Contents	Oscal PowerMax 6000 x 1
	AC Charging Cable x 1
	Car Charging Cable x 1
	Solar Charging Cable x 1
	User Manual x 1
	Warranty Card x 1
