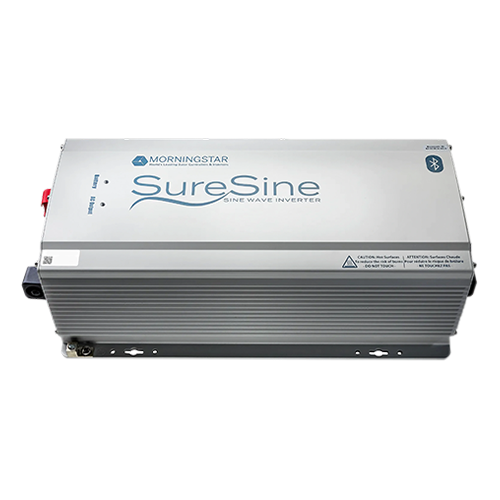

Morningstar SureSine 2500W 48V to 127VAC 60Hz Pure Sine Wave Inverter with Hard-Wired AC Output
by Morningstar
SKU SI-2500-48-127-60-HW
Original price
$1,424.00
-
Original price
$1,424.00
Original price
$1,424.00
$1,424.00
-
$1,424.00
Current price
$1,424.00
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.
The new SureSine off-grid inverter line is Morningstar’s response to the demand for “a Morningstar of inverters” built to the same high standards as the brand’s iconic charge controllers.
- Engineered for system-level integration and communication with Morningstar charge controllers, for more seamless system design and operation. Now system designers can specify “all Morningstar” in their projects
- Wireless Android and iOS utility apps for set-up and monitoring with remote devices, plus Bluetooth communications
Specifications and Certifications by Model
| SureSine 2500 | ||
| Rated Battery Voltage | 48V | |
| Minimum Battery Operating Voltage | 10.5 / 21.0 / 42.0 V | |
| Maximum Battery Operating Voltage | 16.5 / 33.0 / 66.0 V | |
| Continuous Power @ 25C | 2500 W | |
| Power Surge @ 40C (< 5 sec) | 5000 W | |
| Operating Temperature Range | -40°C to +60°C | |
| Peak Efficiency | 95% | |
| Output Voltage Model Options | 120 / 230V +/-5% V | |
| Output Frequency Options | 50 / 60 Hz | |
| Waveform | Pure Sine Wave | |
| Total Harmonic Distortion (THD ) | <2% | |
| Continues... | ||
| Electronic Protections | AC Short Circuit, AC Overload, High/Low Voltage | |
| Battery Reverse Polarity | Replaceable internal fuse | |
| Cooling | Fanless natural convection | |
| Operational Humidity Level | 100%RH non condensing | |
| Weight | 22.1 kg / 48.7 lbs | |
| Dimensions | 544 x 247 x 156 mm 21.4 x 9.7 x 6.1 in |
|
| IP Rating | IP20 | |
| Wired Communications | RS485, USB, Ethernet, MS-CAN | |
| Wireless Communications | Bluetooth, companion Android & iOS Apps | |
