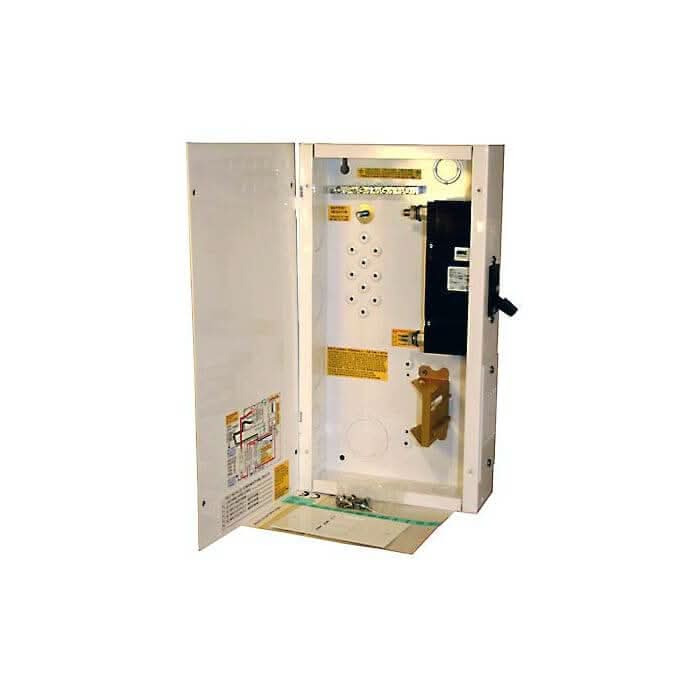

MidNite Solar 250A Mini DC Disconnect Box
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.
The Mini-DC is meticulously designed to cater to a variety of renewable energy installations, and the provided installation instructions outline common application scenarios.
Key Features:
- Aluminum Chassis: Crafted for durability, particularly resistant to rust in tropical and saltwater environments.
- Hinged Door: Facilitates easy access to electrical circuits for convenient maintenance.
- Inverter Breaker: Includes a 250-amp breaker for inverter protection.
- Din Rail: Offers a mounting platform for DC circuits, accommodating PV input, Charge Controller output, DC-GFP, DC loads, and PV combiner.
- Ground Bus Bar: Equipped with 14 poles to ensure efficient grounding of components.
- Mounting Spots for Shunt: Six designated spots available for the installation of 500-amp, 50mV shunts.
- Insulated Bus Bar Mounting Spot: Specifically designed space for an insulated bus bar, serving as the PV negative connection point.
- Knockouts: Features knockouts for inverter and battery cables, charge control mounting, and DC & PV input/output.
- Battery Negative Tie Point: Incorporates a 5/16” diameter stud for a secure battery negative tie point.
- Environmental Rating: Type 1 (Indoor), suitable for indoor installations.
- Warranty: Covered by a 5-year warranty, ensuring product reliability and performance.
- Certifications: Listed by ETL for compliance with safety standards in the United States and Canada.
- Manufacturing Origin: Proudly made in the USA.
These comprehensive features make the Mini-DC an ideal and reliable solution for managing electrical components in diverse renewable energy systems.
