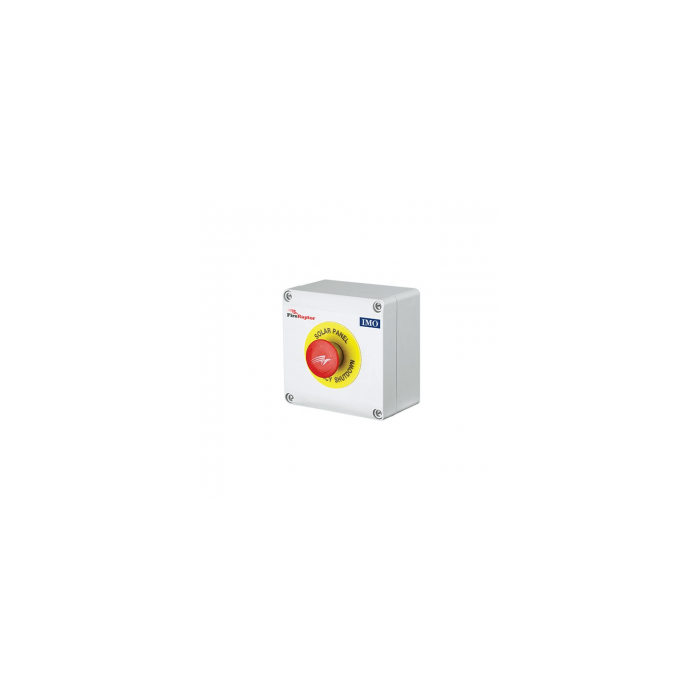

IMO Fireraptor Shutdown Switch for FRS-01
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.
The IMO FireRaptor is designed to instantly cut off DC supply at the panel level, reducing it to zero volts in emergency situations. This shutdown can be triggered through three methods:
-
Manual Operation:
- Panel shutdown to 0V can be manually initiated from ground level.
-
Temperature Rise Trigger:
- Automatic panel shutdown occurs when the temperature exceeds 85°C (185°F).
-
External Power Loss:
- Automatic panel shutdown to 0V is activated in the event of an external power loss.
Key Features:
-
Manual and Automatic Control:
- Manual shutdown allows immediate response from ground level.
- Automatic shutdown based on high-temperature conditions or power loss.
-
Alarm Signaling Options:
- Hardwired or mobile communication options for alarm signaling.
-
Regulatory Compliance:
- Compliant with NEC 2014 and NEC 2017 standards, ensuring adherence to safety regulations.
-
Versatile Application:
- Suitable for both new installations and retro-fit scenarios, providing flexibility in implementation.
The IMO FireRaptor ensures a swift and comprehensive response to emergencies, offering manual and automatic shutdown options while meeting regulatory standards. Its adaptability makes it suitable for various installation scenarios, contributing to enhanced safety measures.
