GOAL ZERO ECOSYSTEM
The Goal Zero ecosystem is designed to give you control over your own power solutions, whether you're looking for home backup, work site power, off-grid power, ways to upgrade your camping trips, or power on the road. We offer portable power stations, expansion batteries, solar panels, lights, and more.
GOAL ZERO POWER APP
Our app has been reimagined and redesigned to work seamlessly with our new Yeti PRO 4000 devices. Monitor, control, and track your power usage from virtually anywhere. Check battery level, power flow in and out, and turn ports on or off. Compare energy use to historical data. Choose from different charge profiles to prioritize Performance, Battery Saver, or Balance modes.
Specifications

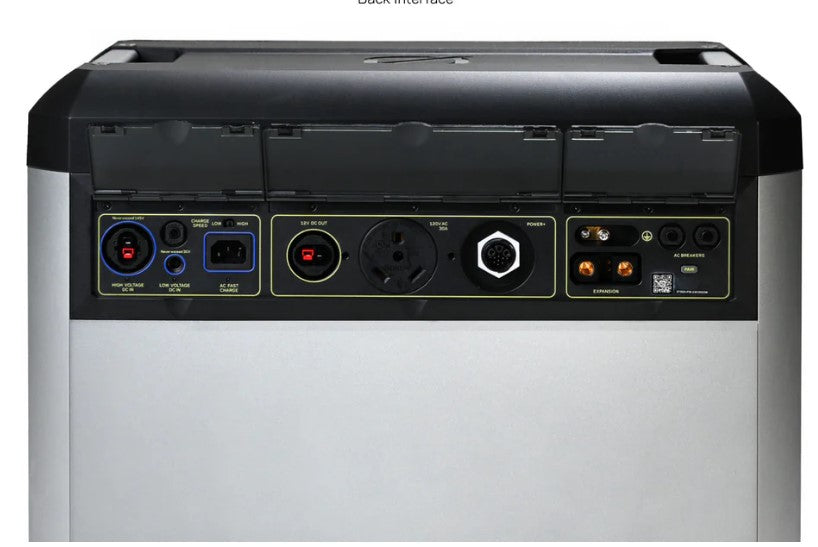

YETI PRO 4000 INPUT
- AC Fast Charge: 1800W (90V-144V, up to 15A)
- Power+: 1800W (90-144V, 15A)
- HPP High Voltage Input: 3000W Max (13.3-150 V, up to 40A)
- 8 mm Low Voltage Input: 275W Max (12.3-28 V, up to 10A)
- Expansion Port For use with Tank Pro 4000: ( 100A, 100V Max)
- Reunion Auto-Lock (Input): 3000W (90-254 V, 30 A),
YETI PRO 4000 INPUT/ OUTPUT
- Reunion Auto-Lock(Pass-Thru): 3600 W, 90-129 V AC, 60 Hz, 30 A
- Reunion Auto-Lock (Output): 3600 W, 120 V AC, 60 Hz, 30 A
- Accessory Port (Input and Output): 56 V DC, 100 A

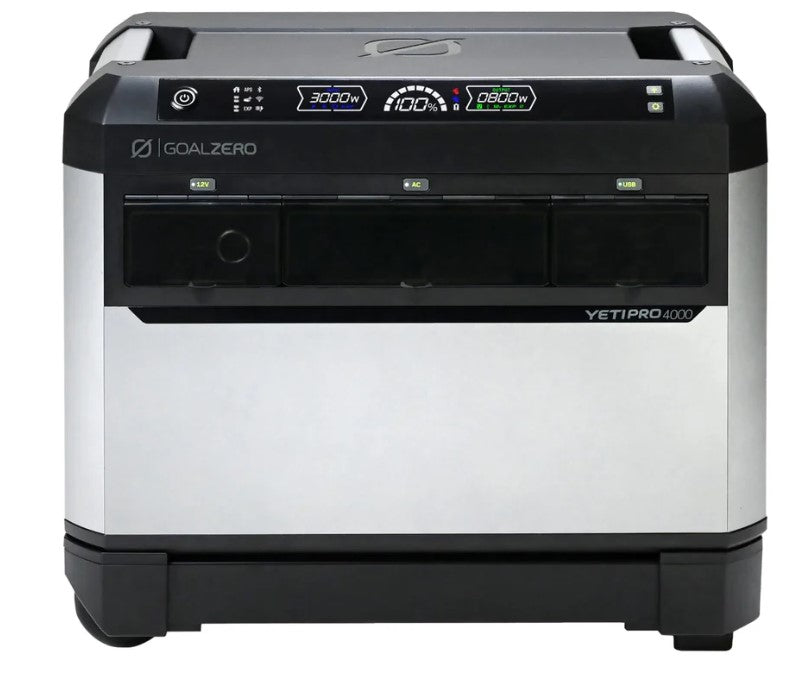

YETI PRO 4000 GENERAL
- Kit SKU: 44582
- Product SKU: 37500
- Dimensions: 21.4 x 13.8 x 14.8 in. (54.3 x 35.1 x 37.7 cm)
- Dimensions (with cart): 21.4 x 13.8 x 18.1 in. (54.3 x 35.1 x 45.9 cm)
- Weight: 115.7 lbs. (52.5 kg)
- Weight (with cart): 125.7 lbs. (57.0 kg)
-
Charge Temperature Range: 32 to 125.6 F (0-52C)
-
Discharge Temperature Range:-4 to 140 F (-20 to 60C)
- Warranty: 5 years*

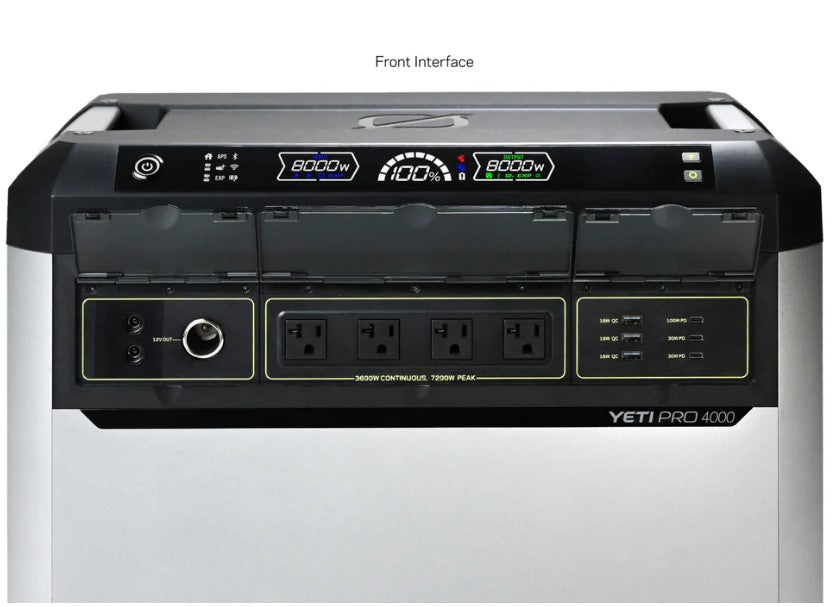

YETI PRO 4000 OUTPUT
- USB-A x 3: 18 W 5-12 V DC Up to 3 A
- Total Combined USB-A Output:54 W
- USB-C (100 W) : 100 W 5-20 V DC Up to 5 A
- USB-C( 30 W x 2): 30 W 5-20 V DC Up to 3 A
- Total Combined USB-C Output:160 W
- 12 V Auxiliary Power Port: 162 W. 13.5 V DC, 12 A Continuous, 40 A Surge (100 ms)
- 12 V High Power Port (HPP): 405 W, 13.5 V DC, 30 A Continuous, 40 A Surge (100 ms)
- 12 V 6 mm Output Port x 2:135 W, 13.5 V DC, 10 A Continuous, 40 A Surge (100 ms)
- Total Combined 12 V Output; 375 W
- AC (Inverter)(pure sine wave): 3600 W Continuous, 7200 W Surge, 120 V AC, 60 Hz, 30 A*
- AC (Single Port)(pure sine wave): 2400 W, 120 V AC, 60 Hz, 20 A*
- AC (TT-30R)(60 Hz - pure sine wave): 3,600 W, 120 V AC, 60 Hz, 30 A
- Total Combined Output: 4189 W
YETI PRO 4000 BATTERY
- Cell Chemistry: LiFePO₄
- Battery Pack Capacity: 3993.6 Wh (51.2 V, 78 Ah)
- Single Cell Equivalent Capacity: 1,248 Ah @ 2.2 V
- Lifecycles*: 4000
- Shelf Life: 12-18 months
YETI PRO 4000 CHARGING SPEED
- Solar (3000 W Max): 2 hrs.
- 400W (Boulder 200 X 2): 12 hrs.
- 600W (Boulder 200 X 4): 6 hrs.
- 1200W (Ranger 300 X 4): 4 hrs.
- Car Charger (10A): 37
- Vehicle (Alternator @ 400 W): 11 hrs.
YETI PRO 4000 COMMUNICATION
- Bluetooth 4.1
- Wi-Fi a/g/n
- Goal Zero companion app required.

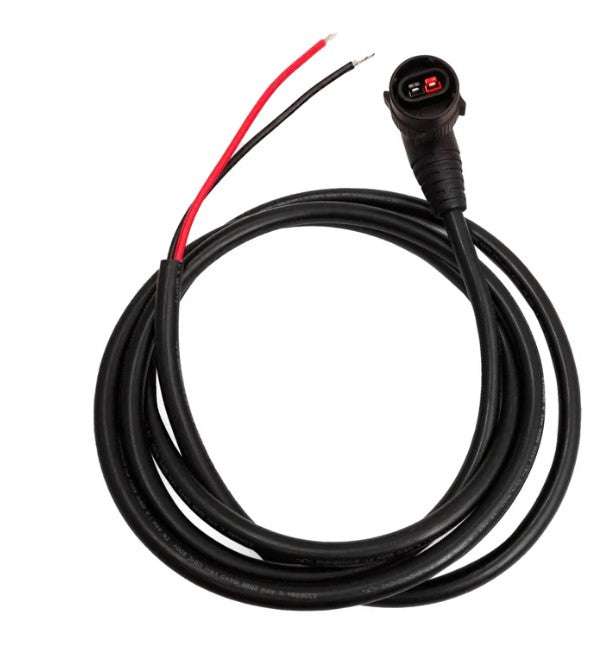

12V Locking HPP to Flying Leads Output Cable
Specs
- Length: 8'
- Wire Gauge: 10AWG
- Current Rating: 30A

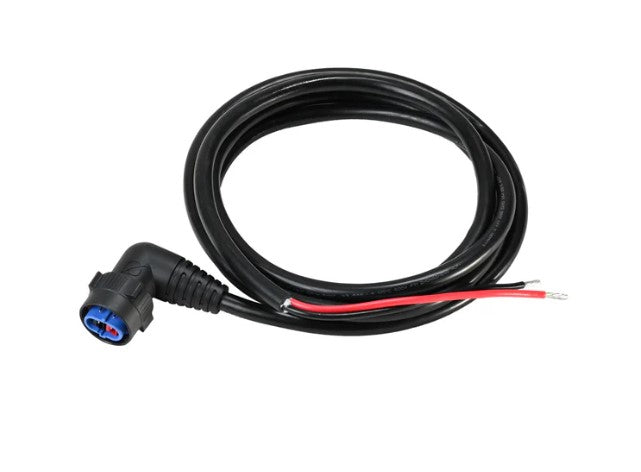

Flying Leads to Solar HPP+ Input Cable
Specs
- Length: 8'
- Wire Gauge: 10AWG
- Current Rating: 40A

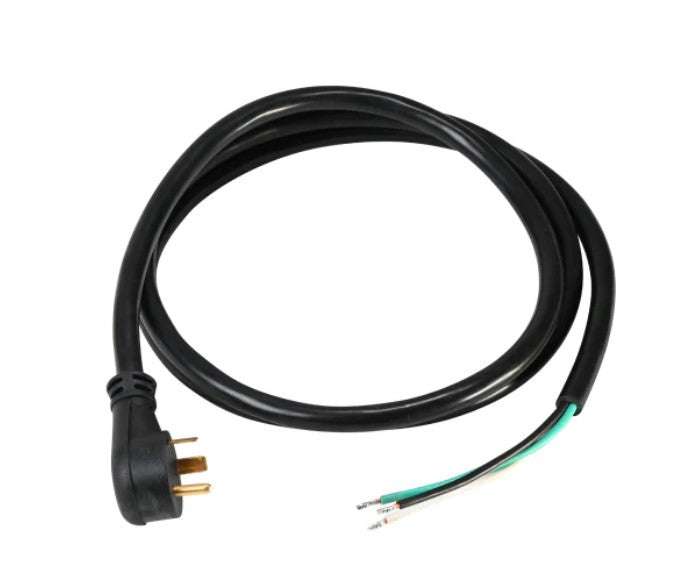

TT-30P to Flying Leads Output Cable
Specs
- Length: 8'
- Wire Gauge: 10AWG
- Current Rating: 30A (120V)

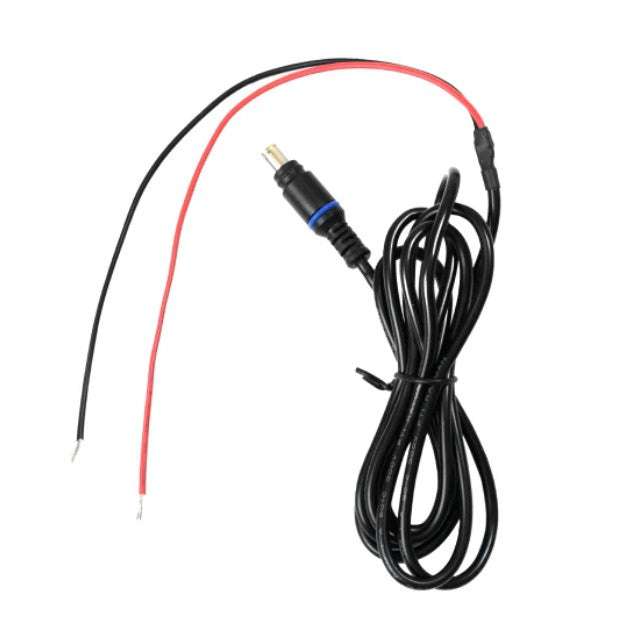

Flying Leads to 8mm DC Input Cable
Specs
- Length: 8'
- Wire Gauge: 16AWG
- Current Rating: 10A
What's in the box

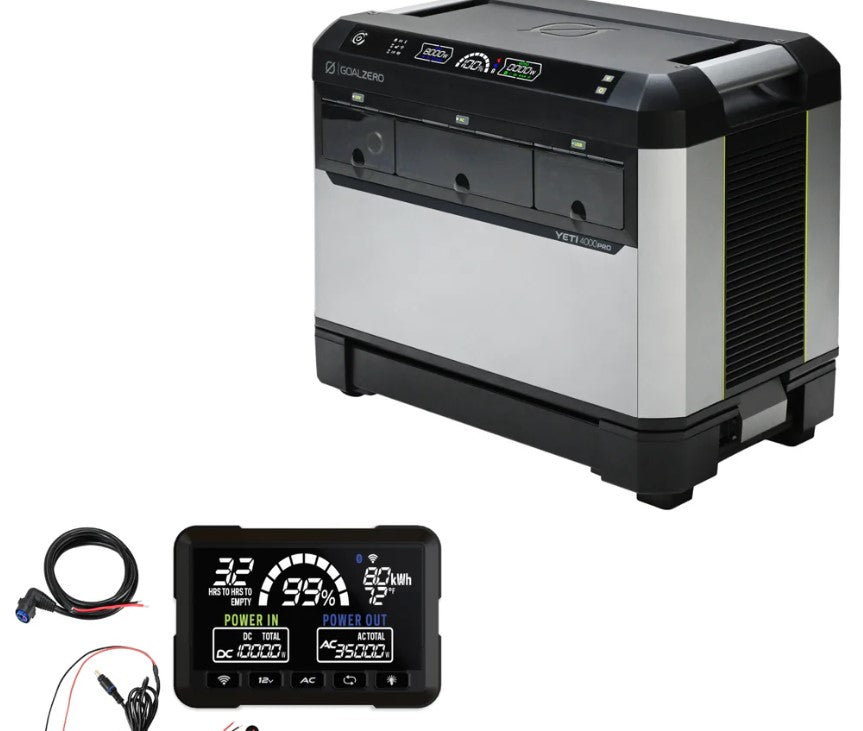

- Yeti PRO 4000
- Roll Cart
- Charging Cable
- Mounting Plate

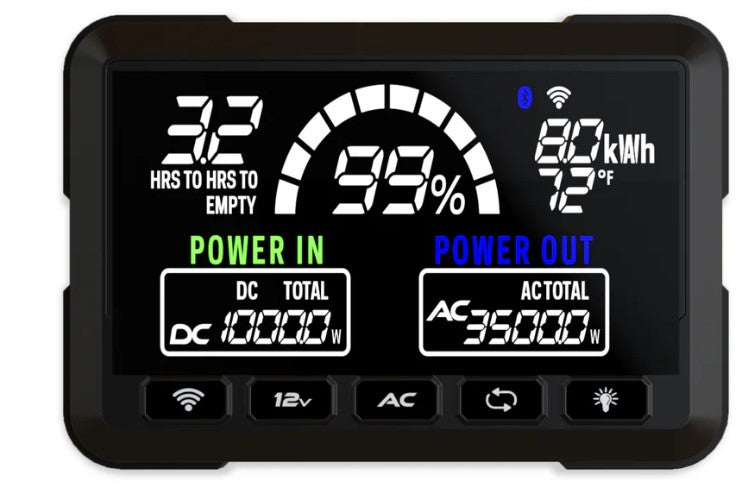

- Escape Remote Display
- Escape Wiring Kit
- - 12V Locking HPP to Flying Leads
- - HPP+ to Flying Leads
- - TT-30P to Flying Leads
- - 8mm to Flying Leads
