Morningstar TriStar™ HV-MPPT - High Voltage Solar Charge Controllers
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.
The TriStar MPPT 600V™ is a breakthrough in charge controller design. By accepting PV array input up to 600 Voc, it enables installers to design systems with longer, fewer strings, reducing cabling and hardware which make installation and wiring easier and faster. Morningstar’s advanced digital engineering combined with superior thermal management make the TS-MPPT-600V with TrakStar technology the only charge controller in its class that doesn’t require a cooling fan or fans, making it both extremely reliable and efficient (with 97.9% peak efficiency). Available in Standard and Disconnect Box versions:
- TS-MPPT-60-600V-48: Standard

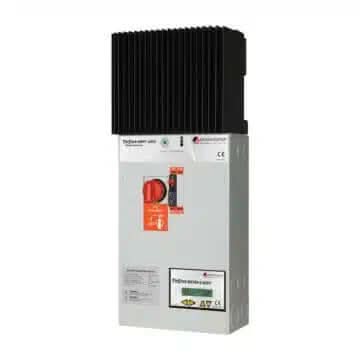

- TS-MPPT-60-600V-48-DB: with Disconnect Box
Specifications and Certifications by Model
| Model | TS-MPPT-60-600V-48 | TS-MPPT-60-600V-48-DB | ||
|---|---|---|---|---|
| *Input power can exceed Nominal Operating Power. Controller will limit and provide its rated continuous maximum output current into batteries. | ||||
| Charge Rating | 60 amps | 60 amps | ||
| Max. PV Open Circuit Voltage (Voc) | 600 volts | 600 volts | ||
| Nominal Battery Voltage | 48V, custom programmable to 24V, 36V, and 60V |
48V, custom programmable to 24V, 36V, and 60V |
||
| Nominal max. Operating Power* – 48 volt battery | 3200W | 3200W | ||
| Peak efficiency | 97.9% | 97.9% | ||
| Battery Voltage Range | 16-72V | 16-72V | ||
| PV Input Operating Voltage Range | 100V to Voc = 525V | 100V to Voc = 525V | ||
| Self-Consumption | 1.75 – 2.50W | 1.75 – 2.50W | ||
| Transient Surge Protection | 4500 Watts/port | 4500 Watts/port | ||
| Voltage Accuracy | <=0.1% +/- 100mV | <=0.1% +/- 100mV | ||
| Operating Temperature Range | -40 C to +45C | -40 C to +45C | ||
| Warranty | 5 Years | 5 Years | ||
| CE and RoHS compliant | Yes | Yes | ||
| IEC 62109 | Yes | Yes | ||
| ETL Listed [UL-1741 and Canadian CSA C22.2 No.107.1.01] | Yes | Yes | ||
| FCC Class B Part 15 Compliant | Yes | Yes | ||
| Manufactured in a Certified ISO 9001 Facility | Yes | Yes | ||
Key Features and Benefits
- Accommodates PV systems > 150 Voc with long wire runs from the array to the controller.
- Uses Morningstar’s patented 4-stage charging algorithm to optimize battery health.
- Extensive system networking, monitoring and communications.
- Optimized for harsh environments and equipped with electronic protections.
- Fanless design for long-term reliability.
Videos
TriStar MPPT 600V Standard and DB Versions | 3 minute video
This video highlights the standard and disconnect box (DB) versions of the TriStar MPPT 600V charge controller. These devices provide an ideal solution for systems that require long wire runs from PV arrays to the controller. Included in the video are pictures of the controller, and applications diagrams regarding grid-tie battery backup and input to PV systems. Additional features such as communications, metering and monitoring are also addressed.
Application
- Residential
- Telecom
