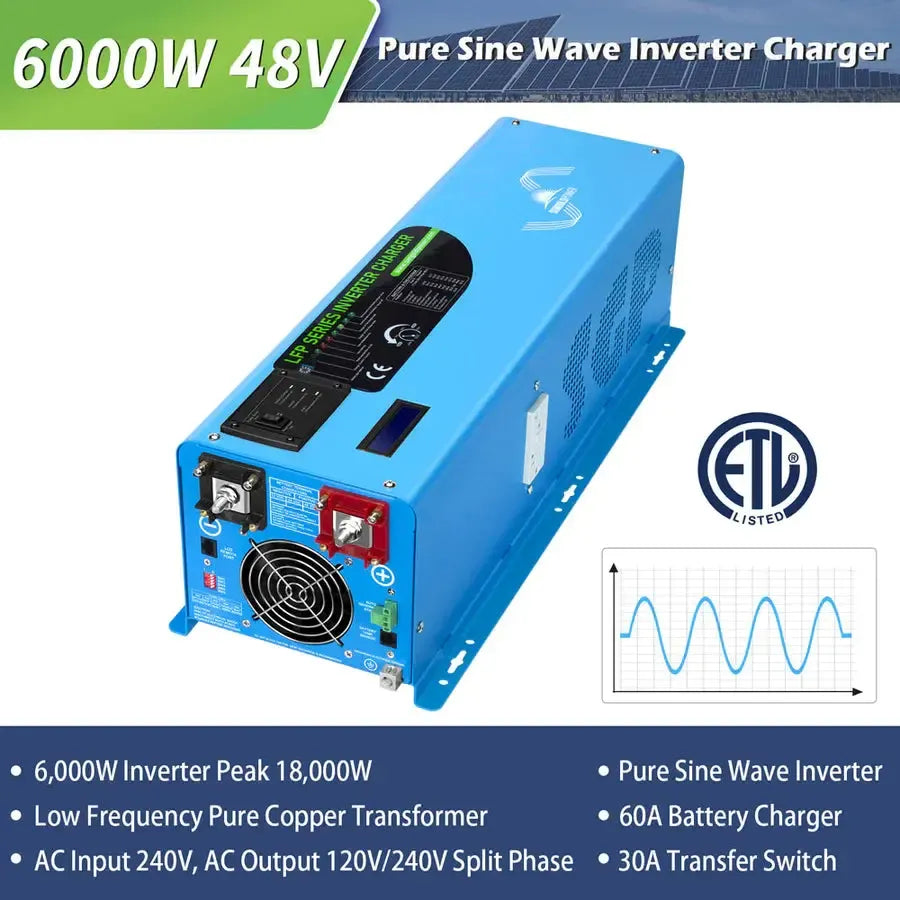

Sungold Power 6000W DC 48V Split Phase Pure Sine Wave Inverter With Charger Ul1741 Standard
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 7-14 business days.
Sungold Power 6000W DC 48V Split Phase Pure Sine Wave Inverter With Charger Ul1741 Standard
Highlight:
-

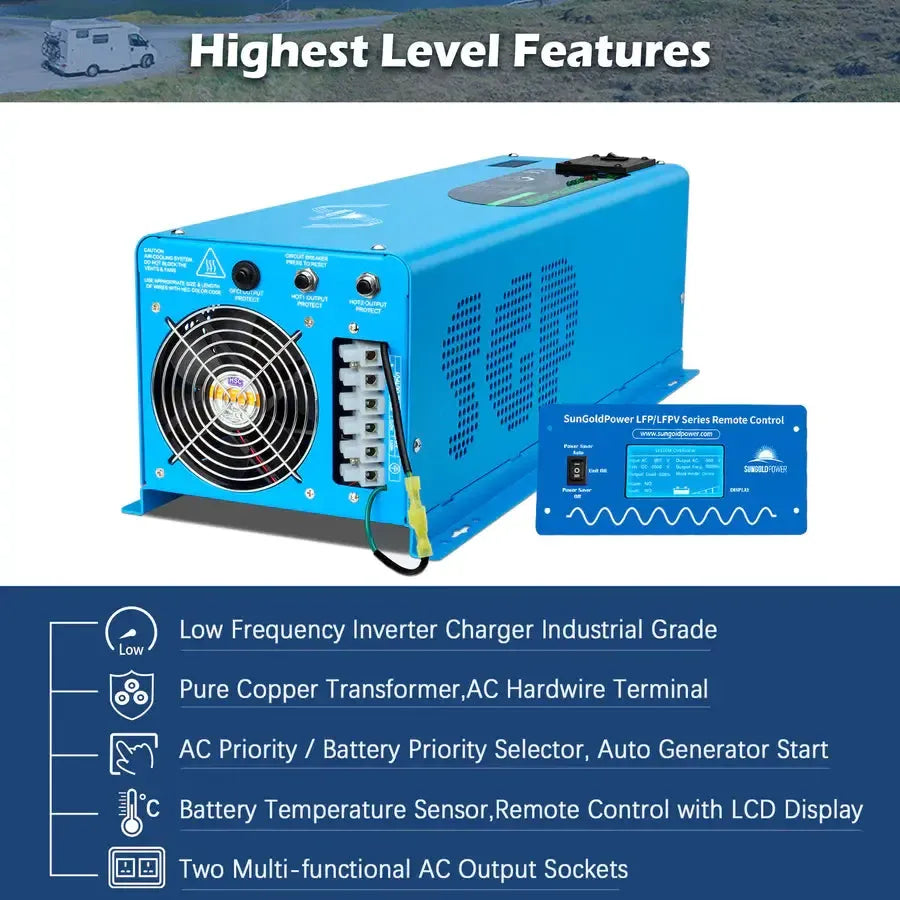

★ This LFP Series 6000 watt Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control. It is UL1741 standard.
- ★ The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
-
★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
-
★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
-
★ Auto Gen Start: The inverter can start up a generator when battery voltage goes low, and turn the generator off after battery charging is finished.
Feature:
The SunGoldPower LFP 6000 Watt DC 48V AC 120/240 Split Phase Inverter Charger is a top high quality low frequency power inverter, built for running your whole house (small home), Business, RV System, Trailer or Boat Application, this inverter charger is perfect for your off grid system or an emergency backup supply.
The split-phase inverter requires 240VAC input and will output 110/120 or 220/230/240VAC, and it can output 50 or 60Hz via the SW4. It is capable of producing 2 legs of 110V, making this inverter perfect for home and business applications with a 220 panel in place.
Three in one product:

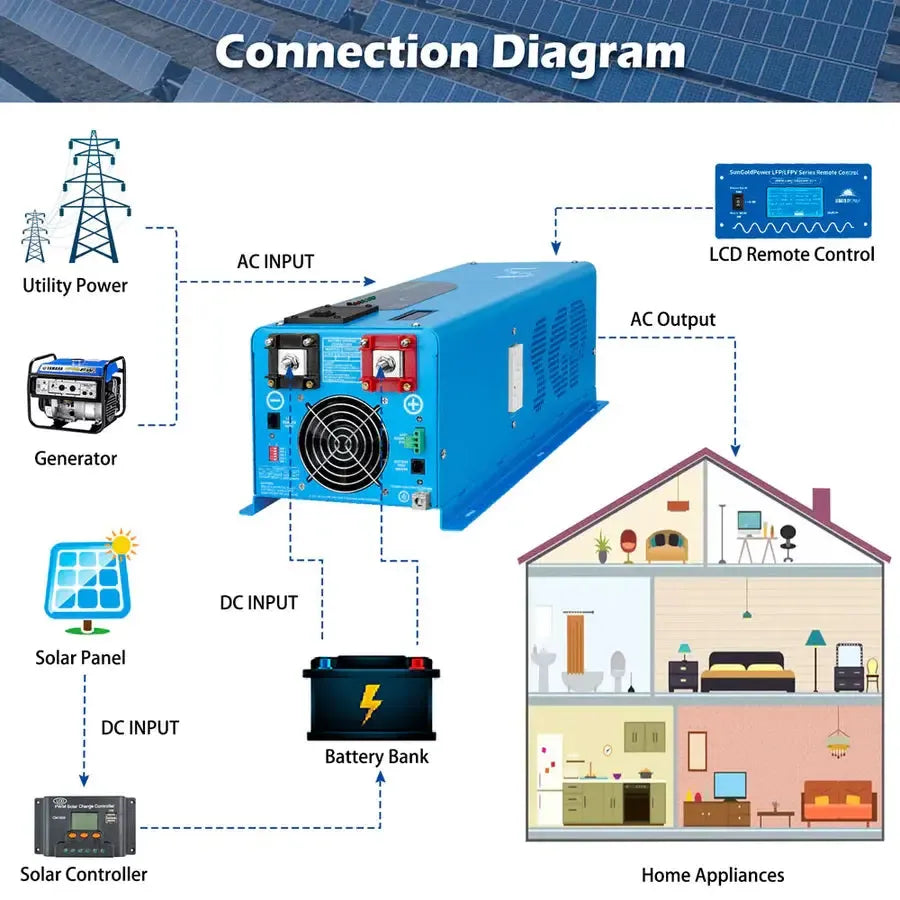

★ The inverter transforms 48V DC power stored by batteries to AC electricity that can power the tools and appliances.
★ It has a built-in 60 amp battery charger which help the grid or generator to recharge the battery.
★ A built-in 80 amp transfer switch allows the product to automatically switch between shore power and battery power within 10 mili seconds.
Specifications:
*6000W Low Frequency Pure Sine Inverter With Charger.
*AC/Battery Priority Selector.
*Automatic Generator Start.
*Safety and Convenient.
*The low frequency inverter can power all kinds of appliances.
*LCD Display, Remote Control.
*Low Idle Consumption.

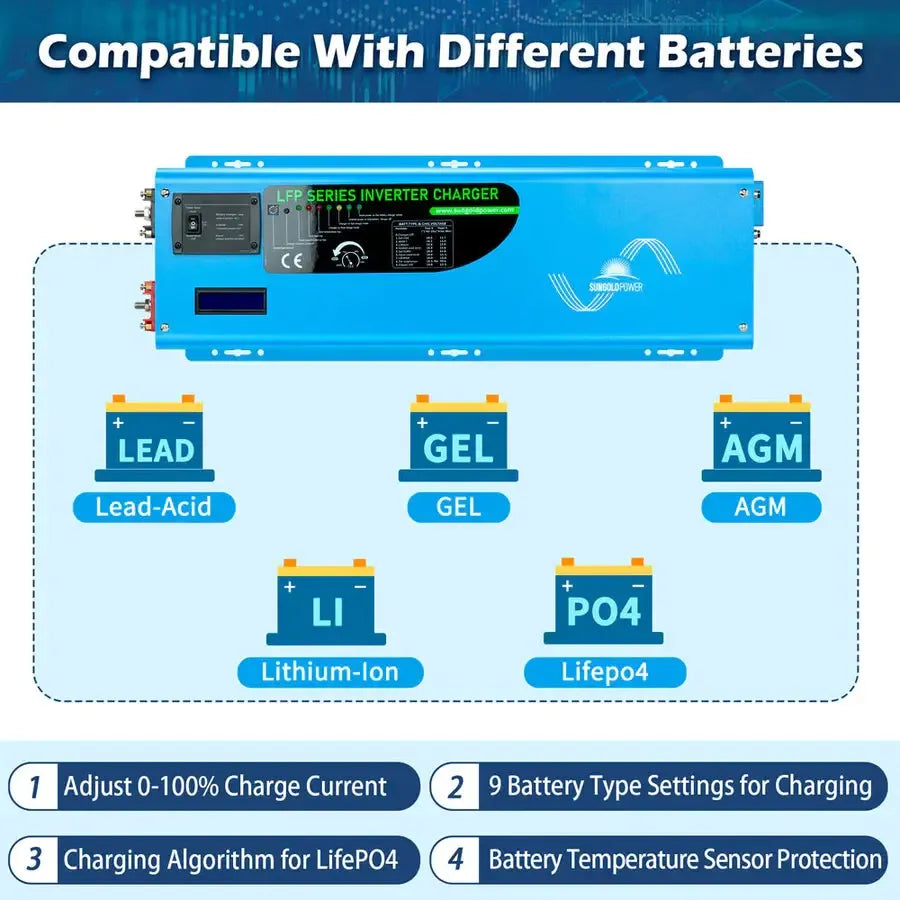

*9 battery type settings for charger.
*Multi Stage Smart charger 60+/-5A, charger can be disable.
*10msec typical transfer time.
Inverter Output:
*Continuous Output Power: 6000W
*Surge Rating: 18000W (20 Seconds)
*AC Output: AC 120V and AC 240V
*AC Input: 240V
*Output Wave: Pure Sine Wave (bypass mode)
*Typical Transfer Time: 10ms (MAX)
*Nominal Efficiency: >88%
DC Input:
*Nominal Input Voltage: 48.0Vdc
*Minimum Start Voltage: 40.0Vdc
*Low Battery Alarm: 42.0Vdc-44.0Vdc
*Low battery Trip: 40.0Vdc-42.0Vdc (select by SW1)
*High Voltage Alarm: 64.0Vdc
*Low battery Voltage Restart: 52Vdc
*Idle Consumption: 81W
*Power Saver Mode Idle Consumption: 30W
AC Charger :
*Charger Rate: 60+/-5A
*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)
*Over Charge Protection Shutdown: 62.8V
*Selectable Charge Setting based on battery type
*Adjustable charge current: off 0%-100%
*3-step intelligent battery charger

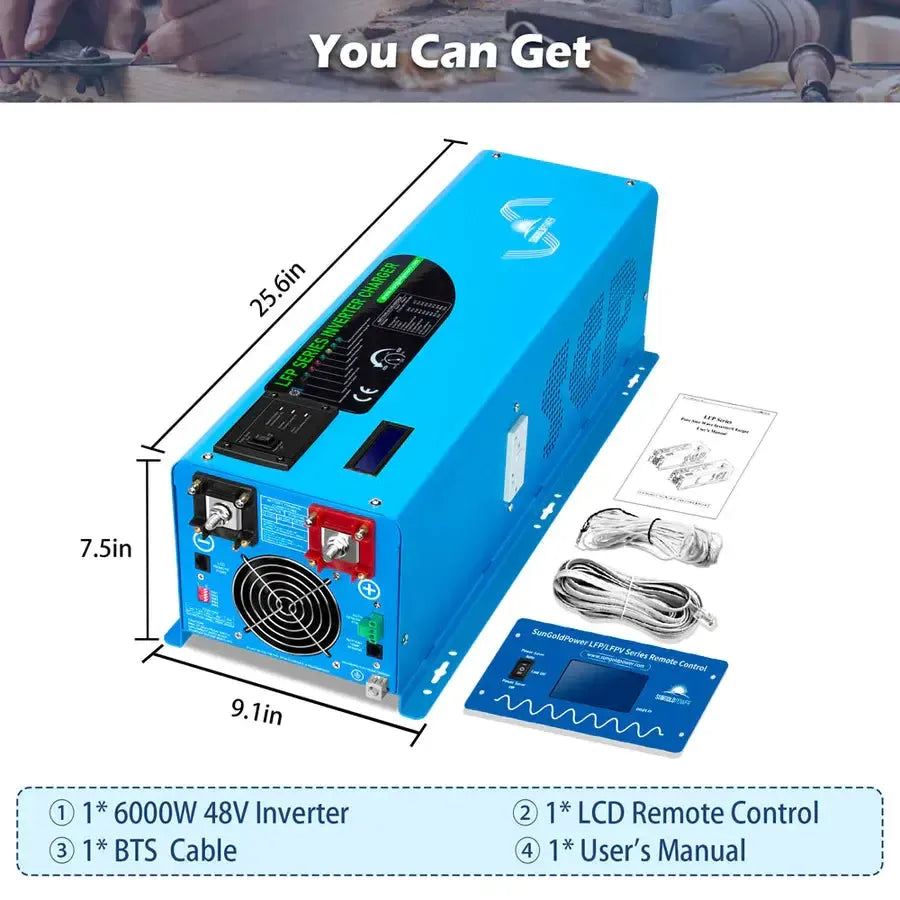

Packaging:
*6000W 48V Low Frequency Pure Sine Inverter
*English Manual
*Remote Control
*BTS Cable
*Unit Weight: 76.7LB
*Unit Size: 25.6 x 9.1 x 7.5 inch
*Shipping Weight: 85.5LB
*Shipping Size: 30.3 x 13.4 x 12.8 inch
Document Library:
DOWNLOAD LFP 6KW 48V PURE SINE WAVE SPLIT INVERTER/CHARGER DATA SHEET
